Weidmuller 1430100000 BVF 7.62HP/05/180MSF2 SN BK BX
- MPN: 1430100000
- PPN: WDM-1430100000
CAD
$8.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

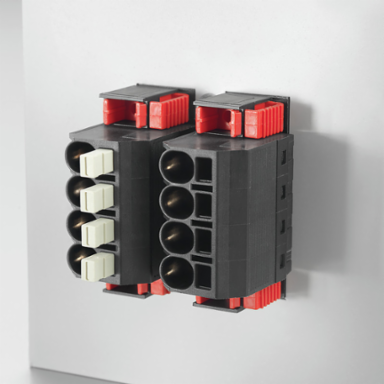

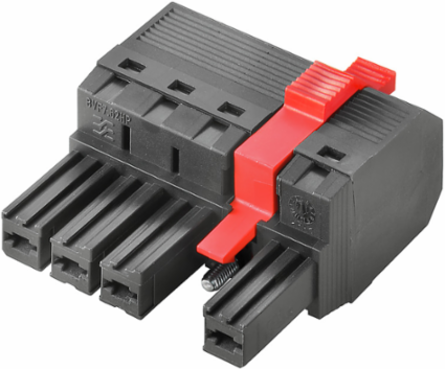

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 5, 180°, PUSH IN, Clamping range, max. : 10 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (cURus)
- cURus
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group C / UL 1059)
- 39 A
- Wire cross-section, AWG, min.
- AWG 24
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (cURus)E60693
Rated voltage (Use group C / UL 1059)600 V
Rated current (Use group B / UL 1059)39 A
Rated current (Use group D / UL 1059)5 A
Wire cross-section, AWG, max.AWG 8
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Height
- 22.9 mm
- Depth
- 47.7 mm
- Net weight
- 27.542 g
Height (inches)0.902 inch
Depth (inches)1.878 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

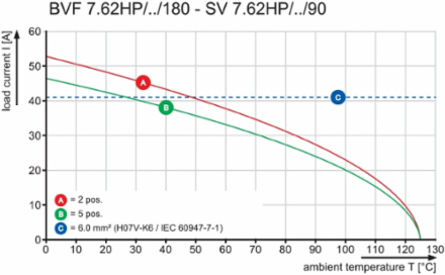

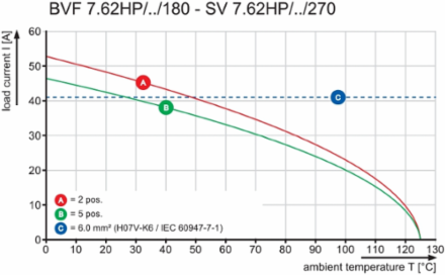

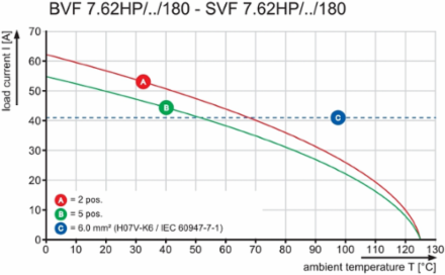

- Rated current, max. number of poles (Tu=20°C)
- 51 A
- Rated current, max. number of poles (Tu=40°C)
- 45 A
- Rated voltage for surge voltage class / pollution degree III/2
- 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 6 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 8 kV
- Clearance, min.
- 10.4 mm
Rated current, min. number of poles (Tu=20°C)57 A
Rated current, min. number of poles (Tu=40°C)57 A
Rated voltage for surge voltage class / pollution degree II/21,000 V
Rated voltage for surge voltage class / pollution degree III/3800 V
Rated impulse voltage for surge voltage class/ pollution degree III/28 kV
Short-time withstand current resistance3 x 1s with 420 A
Creepage distance, min.12.7 mm
Material Data
- Insulating material
- PA GF
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 500
- UL 94 flammability rating
- V-0
- Contact material
- Copper alloy
- Layer structure of plug contact
- 6-8 µm Sn glossy
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourblack
Insulating material groupII
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.125 °C
Temperature range, installation, max.125 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Product family
- OMNIMATE Power - series BV/SV 7.62HP
- Wire connection method
- PUSH IN
- Pitch in inches (P)
- 0.3 inch
- Number of poles
- 5
- L1 in inches
- 1.5 inch
- Rated cross-section
- 6 mm²
- Touch-safe protection acc. to DIN VDE 0470
- IP 20
- Can be coded
- Yes
- Tightening torque for screw flange, min.
- 0.2 Nm
- Screwdriver blade
- 0.6 x 3.5
- Plugging force/pole, max.
- 17 N
Type of connectionField connection
Pitch in mm (P)7.62 mm
Conductor outlet direction180°
L1 in mm38.1 mm
Pin series quantity1
Touch-safe protection acc. to DIN VDE 57 106Safe from finger touch
Volume resistance4.50 mΩ
Stripping length12 mm
Tightening torque for screw flange, max.0.3 Nm
Plugging cycles25
Pulling force/pole, max.15 N
Packing
- Packaging
- Box
- VPE width
- 0
VPE length0
VPE height0
Notes
- Notes

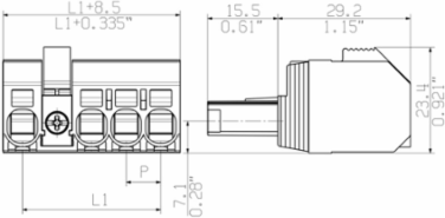

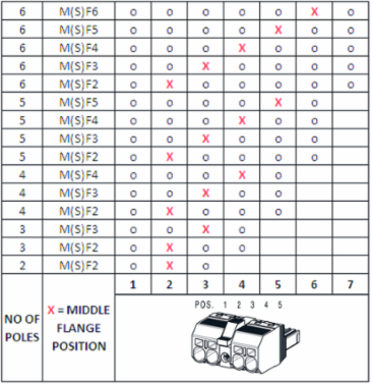

- Additional colours on request Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3 Versions with pusher, see BVFL
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.5 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stranded, max. H07V-R
- 10 mm²
- Flexible, max. H05(07) V-K
- 10 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, max.
- 6 mm²
- w. wire end ferrule, DIN 46228 pt 1, max.
- 10 mm²
Clamping range, max.10 mm²
Solid, max. H05(07) V-U10 mm²
Flexible, min. H05(07) V-K0.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.0.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.0.5 mm²
Max. clamping range10 mm²
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 600 V
- Rated voltage (Use group D / CSA)
- 600 V
- Rated current (Use group C / CSA)
- 33 A
- Wire cross-section, AWG, min.
- AWG 24
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1121690
Rated voltage (Use group C / CSA)600 V
Rated current (Use group B / CSA)33 A
Rated current (Use group D / CSA)5 A
Wire cross-section, AWG, max.AWG 8
