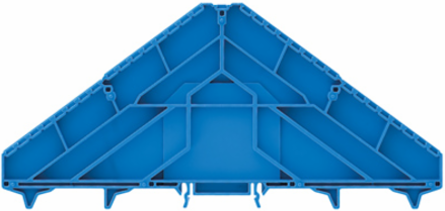

Weidmuller 1267940000 BZT PRV16 BL 35X7.5
- MPN: 1267940000
- PPN: WDM-1267940000
CAD
$11.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
P-series, Marker holder, blue, Number of levels: 16, TS 35 x 7.5
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 10.2 mm
- Height
- 225 mm
- Depth
- 105.9 mm
- Net weight
- 50.7 g
Width (inches)0.402 inch
Height (inches)8.858 inch
Depth (inches)4.169 inch
Material Data
- Material
- Polycarbonate
- UL 94 flammability rating
- V-0
Colourblue
Classifications
- ETIM 6.0
- EC002848
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC002848
eClass 9.127-14-11-92
System Specifications
- Version
- For the mounting rails
- Number of clamping points per level
- 2
Number of levels16
RailTS 35 x 7.5
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 125 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Rated Connection)
- Number of connections
- 32
