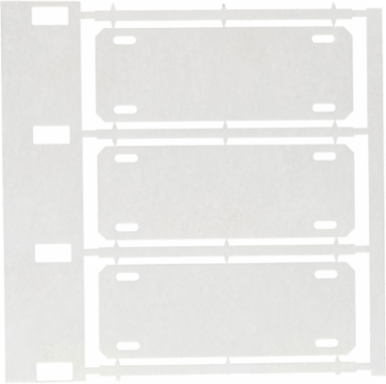

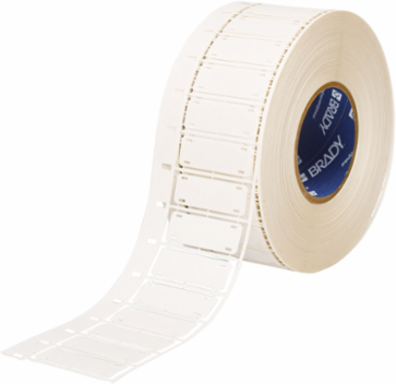

Brady HSNX-800-2-WT Cable and Harness Marking Tags, Write-on Labels, 0.8" H x 2.2" W, Roll of 2500 Tags, White
Brady HSNX-800-2-WT Cable and Harness Marking Tags, Write-on Labels, 0.8" H x 2.2" W, Roll of 2500 Tags, White
- MPN: HSNX-800-2-WT
- UPC: 662820577508
- PPN: BRD-HSNX-800-2-WT
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3803.03/ EA
Description
B-508 tags are designed as high performance bundle and cable identification tags to stand up to the harshest environments.
Features
- Dot matrix or thermal transfer printable tags are available in white, yellow or green
- B-508 tags have excellent tear, solvent and heat resistance properties
- Service temperature of -94°F to 266°F (-70°C to 130°C)
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Enables Industry Compliance
- ASTM D 1000; ASTM E 162; ASTM E 595; ASTM E 662
- Flame Retardant
- Yes
- Primary Noun, Basic Function
- Tag
- Printer Compatibility (Print)
- BBP12
- Quantity per Row
- 1
- Ribbon Series
- R4300; R7950
- Suggested Ribbon Series
- R4300; R5000
- Total Quantity
- 2500
- Brady Material Number
- B-508
- Material Properties
- Rigid
- SAP B-Number
- B-508
- Dimensions (Metric)
- 55.88 mm W x 20.32 mm H
- Height (in/ft/yd)
- 0.8 in
- Maximum Service Temperature °C
- 130 °C
- Minimum Service Temperature °C
- -70 °C
- Roll/Tape Size (in/ft/yd)
- 0.8 in H x 2.2 in W
- Size - Width (mm)
- 55.88 mm
- Thickness (mm/cm/m)
- 0.305 mm
- Web Width (in/ft/yd)
- 3.25 in
- Width (in/ft/yd)
- 2.2 in
Brand NameBrady®
DiagramIcon 39 (downwards triangle with centre dot)
FinishMatte
For Use with PrinterBradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600
Quantity per Roll2500
Recommended RibbonR4300
ShapeRectangle
Total Qty per Pack2500 Tag / Roll
Trade NameNomex®
MaterialNomex® Tag
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Heat-Resistant; Humidity-Resistant; Tear-Resistant; UV-Resistant; Weather-Resistant
Dimensions0.8 in H x 2.2 in W
Dimensions 20.8 in H x 2.2 in W
Height (mm/cm/m)20.32 mm
Maximum Service Temperature °F266 °F
Minimum Service Temperature °F-94 °F
Sign Size-General0.8 in x 2.2 in
Thickness (in/ft/yd)0.012 in
Vertical Repeat (mm)25.70 mm
Web Width (mm/cm/m)82.55 mm
Width (mm/cm/m)55.88 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
