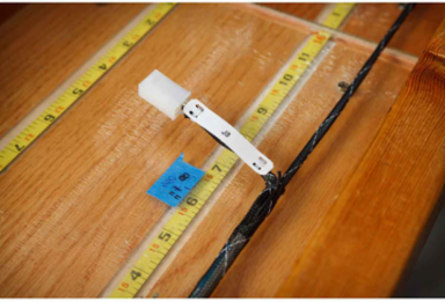

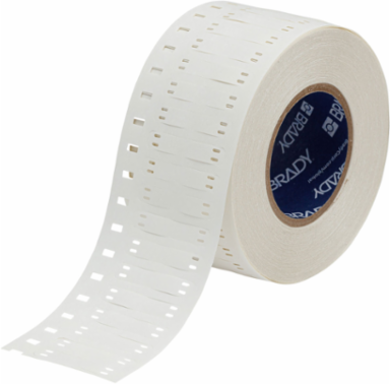

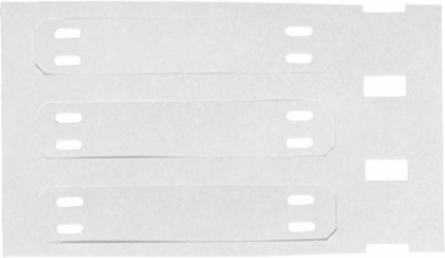

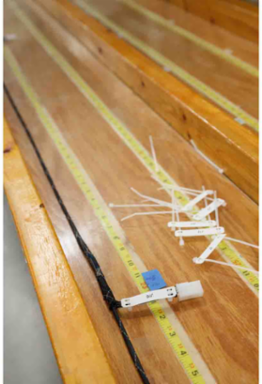

Brady HSNX-400-2-WT Cable and Harness Marking Tags, Bilingual REJECTED Labels, 0.41" H x 2.2" W, Roll of 2500 Tags, White
Brady HSNX-400-2-WT Cable and Harness Marking Tags, Bilingual REJECTED Labels, 0.41" H x 2.2" W, Roll of 2500 Tags, White
- MPN: HSNX-400-2-WT
- UPC: 662820577485
- PPN: BRD-HSNX-400-2-WT
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2225.98/ EA
Description
B-508 tags are designed as high performance bundle and cable identification tags to stand up to the harshest environments.
Features
- Dot matrix or thermal transfer printable tags are available in white, yellow or green
- B-508 tags have excellent tear, solvent and heat resistance properties
- Service temperature of -94°F to 266°F (-70°C to 130°C)
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM E 162; ASTM E 595; ASTM E 662; ASTM G 155
- Flame Retardant
- Yes
- Primary Noun, Basic Function
- Tag
- Printer Compatibility (Print)
- BBP12
- Quantity per Row
- 1
- Ribbon Series
- R4300; R7950
- Suggested Ribbon Series
- R4300; R5000
- Total Quantity
- 2500
- Adhesive (Y/N)
- No
- Material
- Nomex® Tag
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Heat-Resistant; Humidity-Resistant; Tear-Resistant; UV-Resistant; Weather-Resistant
- Dimensions
- 0.41 in H x 2.2 in W
- Dimensions 2
- 0.41 in H x 2.2 in W
- Height (mm/cm/m)
- 10.41 mm
- Maximum Service Temperature °F
- 266 °F
- Minimum Service Temperature °F
- -94 °F
- Sign Size-General
- 0.41 in x 2.2 in
- Thickness (in/ft/yd)
- 0.012 in
- Vertical Repeat (mm)
- 15.79 mm
- Web Width (mm/cm/m)
- 82.55 mm
- Width (mm/cm/m)
- 55.88 mm
Brand NameBrady®
DiagramIcon 39 (downwards triangle with centre dot)
FinishMatte
For Use with PrinterBradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600
Quantity per Roll2500
Recommended RibbonR4300
ShapeRectangle
Total Qty per Pack2500 Piece(s) / Roll
Trade NameNomex®
Brady Material NumberB-508
Material PropertiesRigid
SAP B-NumberB-508
Dimensions (Metric)55.88 mm W x 10.41 mm H
Height (in/ft/yd)0.41 in
Maximum Service Temperature °C130 °C
Minimum Service Temperature °C-70 °C
Roll/Tape Size (in/ft/yd)0.41 in H x 2.2 in W
Size - Width (mm)55.88 mm
Thickness (mm/cm/m)0.305 mm
Web Width (in/ft/yd)3.25 in
Width (in/ft/yd)2.2 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
