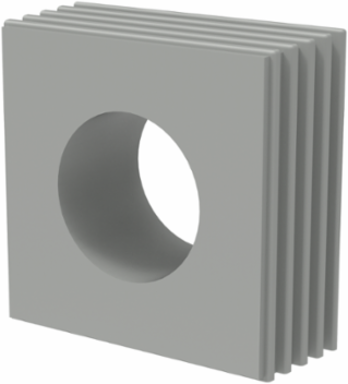

nVent Hoffman CCFGLB Large Cable Entry Grommet 43x43x18mm IP66 Gray Plastic
- MPN: CCFGLB
- UPC: 783510583538
- PPN: HOF-CCFGLB
- UNSPSC: 39121324
CAD
$2.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Large Cable Entry Grommet 43x43x18mm IP66 Gray Plastic
Features
- Finish: Gray
- Pack quantity: 10
- Description: The CCFG system is available in two sizes: small and large. The conical shape of the grommets allows them to be easily pressed in and provides static strain relief in accordance with DIN EN 62444. For assembly, they are pressed from the inside out into the openings of the assembled inlays. The grommets are available in two different sizes to match the diameter of the cable. The CCFG is first placed around the cable and then inserted into the cable gland. Thanks to the wave-cut profile, there is no need to remove the connector on the assembled cabled.
- Temperature resistance: -40°C to +90°C
- Flammability: UL94 V-0
- Protection: IP66, NEMA 1, 4x, 12 (Indoor use only)
- Material: TPE
- Large Grommets available with different hole sizes to match cable diameter
- Grommet is placed around cable and then inserted into cable gland
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 42
- Protection Rating
- NEMA Type 1
- Material
- Plastic
- Color
- Gray
- Weight
- 0.0344671201814059
Height (H)42.8
Depth (D)17.7
Product FamilyCable Manager
FinishUntreated
Operating Temperature-40
Works WithNEMA
