Klein Tools VDV026-813 Pass-ThruTM Cable Installation Kit with Tester, Crimper & Connectors
- MPN: VDV026-813
- UPC: 092644583902
- PPN: KLT-VDV026-813
- UNSPSC: 41113740
CAD
$101.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Pass-Thru™ Cable Installation Kit includes the tools needed to connect and test Klein Tools' RJ45 Pass-Thru™ connectors onto category cables. Test CAT3, CAT5e and CAT6/6A cables with the LAN Explorer® Data Cable tester. The kit includes the tester, a Pass-Thru™ crimper, a pack of 50 CAT5e/CAT6 Pass-Thru™ connectors and a zippered storage pouch.
Features
- Cable Tester Kit includes the components needed to terminate data cables using time saving Pass-Thru™ technology
- Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
- Certified for PoE+

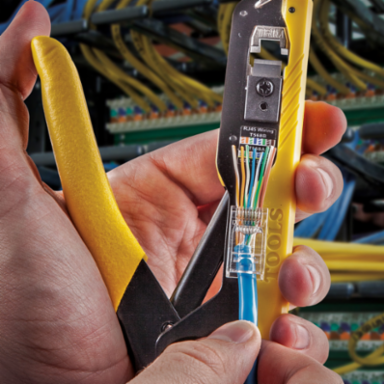

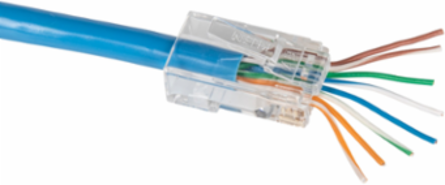

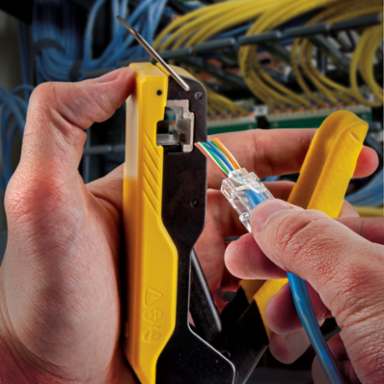

- CAT5e/CAT6 cables easily pass through connector to visually ensure that wires are in the correct order for consistent and secure terminations

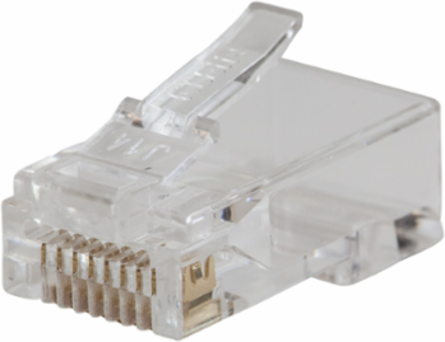

- 8 position, 8 contact Pass-Thru™ style data plug for solid or stranded cable

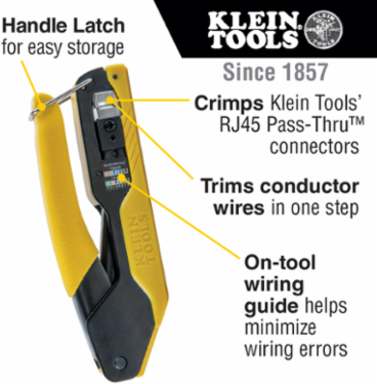

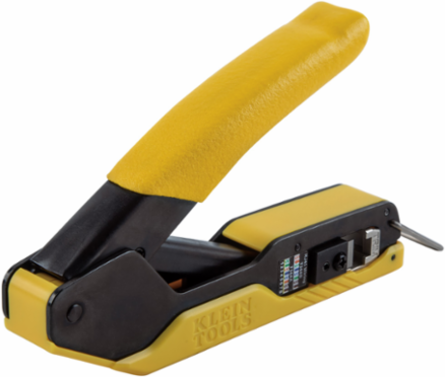

- Fast, simple RJ45 Pass-Thru™ Crimper (Cat. No. VDV226-005) crimps and trims Klein Tools RJ45 Pass-Thru™ connectors onto data cables (round STP / UTP cables)

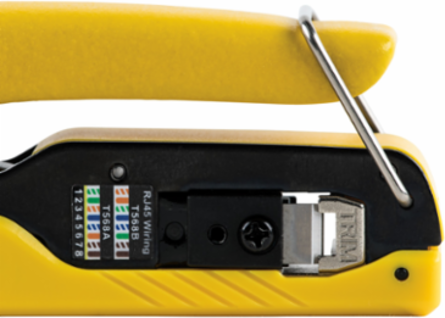

- Wiring guide on crimper helps minimize wiring errors

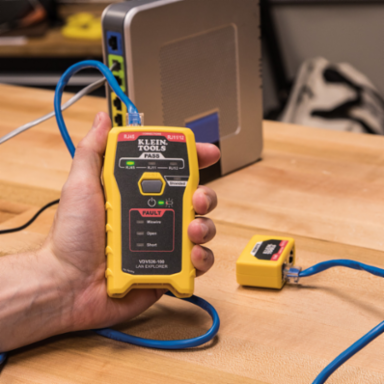

- Cable tester (Cat. No. VDV526-100) with single button testing of terminated voice and data cables
- Test CAT3, CAT5e and CAT6/6A cables

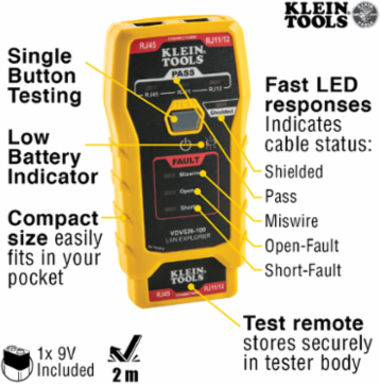

- Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)
- Compact tester easily fits in your pocket

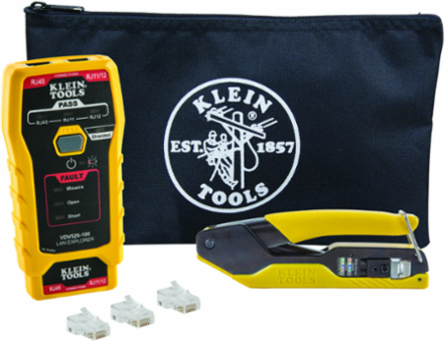

- Includes tester, crimper, Pass-Thru™ connectors and USA-made zippered pouch for storage
- Exclusive Pass-Thru™ Connectors
Documentation & Downloads
Specifications
Key Specifications
| Supported Remotes | Single, Stored on Tester |
|---|---|
| Drop Protection | 2' (0.6 m) |
| Test & Measure Types | Pin to Pin Wiremap; Shield |
| Material | High Carbon Steel, Polycarbonate Plastics, Stamped Steel, Vinyl |
| Connection & Adapter Types | RJ45, RJ11/12 |
| Display | LED |
| Application | Pass-Thru™ Installation |
| Overall Width | 4 Inch (10.2 cm) |
| Overall Height | 15.2 Inch (38.6 cm) |
| Width | 5.0000 in |
| Weight | 1.6000 lbs |
| Cable Type | CAT3, CAT5e, CAT6/6A |
|---|---|
| Battery Life | Active - 80 hr; Standby - 3.5 yr. |
| Type | Cable Installation Kit |
| Cable Identification | No |
| Multiple Style Tone Generator | No |
| Batteries | 1 x 9V |
| Included | Tester, Crimper, Connectors, Pouch |
| Overall Length | 5 Inch (12.7 cm) |
| Height | 4.0000 in |
| Depth | 15.1250 in |
