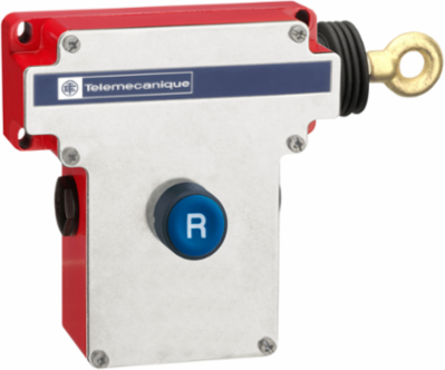

Telemecanique Sensors XY2CE1A190H7 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable 300 VAC 10amp XY2CE+options
- MPN: XY2CE1A190H7
- PPN: TES-XY2CE1A190H7
- UNSPSC: 39122213
CAD
$596.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable 300 VAC 10amp XY2CE+options
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Emergency stop rope pull switches XY2C
- Product Or Component Type
- latching emergency stop rope pull switch
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
Device Short NameXY2CE
Complementary
- Connections - Terminals
- screw clamp terminal, 1 x 0.5...2 x 1.5 mm²
- Contacts Type And Composition
- 1 NC + 1 NO
- [Ui] Rated Insulation Voltage
- 500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Distance Between Cable Supports
- 5-5 m
- Positive Opening
- with EN/IEC 60947-5-1
- Compatibility Code
- XY2CE
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Safety Reliability Data
- B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
- Cover Material
- stainless steel
- Net Weight
- 1.45 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Safety Level
- can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Resetby flush push-button
Terminals Description Iso N°1(21-22)NC || (13-14)NO
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
Contact Operationslow-break
Mechanical Durability60000 cycles
Cable Entry Number3 plain hole Pg 13.5 or ISO M20 cable gland
Body Materialzamak
Trigger Cable Anchor PointRH side
MarkingCE
Local Signallingwithout pilot light
Tightening Torque0.8-1.2 N.m
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN/IEC 60947-5-5 || machinery directive 2006/42/EC || EN/ISO 13850 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || work equipment directive 2009/104/EC || EN/IEC 60204-1
- Shock Resistance
- 50 gn 11 ms EN/IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Storage-40-70 °C
Product CertificationsUL category NISD emergency stop devices || CSA || CCC
Vibration Resistance10 gn 10-300 Hz)EN/IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111159EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
