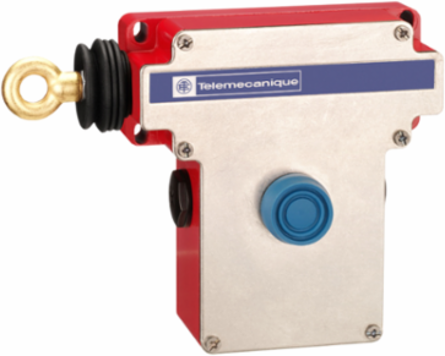

Telemecanique Sensors XY2CE5A270H7 Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable anchor righ
- MPN: XY2CE5A270H7
- PPN: TES-XY2CE5A270H7
- UNSPSC: 39122213
CAD
$996.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable anchor righ
Documentation & Downloads
Specifications
Key Specifications
- Housing Colour
- blue
- Overvoltage Category
- class I EN/IEC 61140 || class I NF C 20-030
- Device Short Name
- XY2CE
Range Of ProductTelemecanique Emergency stop rope pull switches XY2C
Product Or Component Typelatching emergency stop rope pull switch
Complementary
- Trigger Cable Maximum Length
- 50 m
- Reset
- without
- Number Of Cables
- 1
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60269
- Contact Operation
- snap action
- Mechanical Durability
- 60000 cycles
- Cable Entry Number
- 3 tapped entry Pg 13.5 cable gland
- Body Material
- zamak
- Trigger Cable Anchor Point
- LH side
- Cover Material
- stainless steel
- Tightening Torque
- 0.8-1.2 N.m
- Maximum Resistance Across Terminals
- 25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Connections - Terminalsscrew clamp terminal, 1 x 0.5...2 x 1.5 mm²
Contacts Type And Composition1 NC + 1 NO
[Ui] Rated Insulation Voltage500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Distance Between Cable Supports5-5 m
Positive Openingwith EN/IEC 60947-5-1
Compatibility CodeXY2CE
[Ithe] Conventional Enclosed Thermal Current10 A
MarkingCE
Local Signallingwithout pilot light
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- EN/IEC 60947-5-1
- Shock Resistance
- 50 gn 11 ms EN/IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Storage-40-70 °C
Product CertificationsCSA
Vibration Resistance10 gn 10-300 Hz)EN/IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
