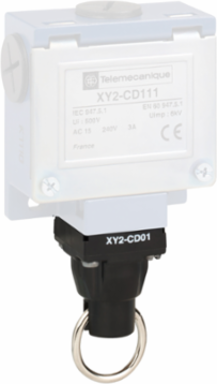

Head for simple rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, XY2Cd11 cable sw 240 VAC 10 A
Telemecanique Sensors

Telemecanique Sensors XY2CD01 Head for simple rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, XY2Cd11 cable sw 240 VAC 10 A

  • MPN: XY2CD01
  • PPN: TES-XY2CD01
  • UNSPSC: 39122213

CAD

$314.27

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of the XY2C range, an offer of emergency stop rope pull switches. This switch head is suitable for XY2CD emergency stop rope pull switches. The switch head is made of plastic and available in black color. It is suitable for woodworking machines, conveyor systems, printing machines, textile machines, rolling mills, test laboratories and surface treatment works. The XY2 line of switches come in a robust metal enclosure so they can be used in severe environments and they conform to EN/ISO 13850 and EN/IEC 60947-5-5. XY2 range emergency stop rope pull switch is intended for all machines requiring stopping of a dangerous movement in the immediate vicinity of the machine.

Documentation & Downloads

Specifications

Key Specifications

Housing Colour
black
Product Or Component Type
head for simple rope pull switch
Range Of ProductTelemecanique Emergency stop rope pull switches XY2C
Device Short NameXY2CD

Complementary

Compatibility Code
XY2CD
Body Material
plastic
Operating Force237-237 daN operating head || 36-36 daN operating ring

Environment

Ambient Air Temperature For Operation
-20-70 °C
Product CertificationsCCC || CE

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP110614EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
