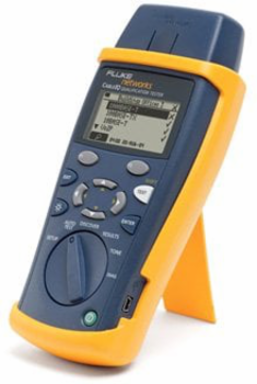

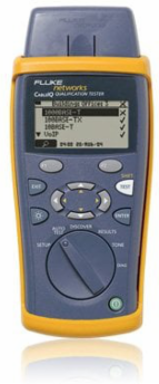

Fluke CIQ-IDK57 CableIQ™ Qualification Tester
- MPN: CIQ-IDK57
- UPC: 754082031987
- PPN: FLU-CIQ-IDK57
CAD
$629.75
/ EA
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Documentation & Downloads
Specifications
General Specifications
| Cable types supported | UTP, STP, FTP, SSTP, RG6, RG59, audio and security |
|---|---|
| Supported tests | Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection. |
| Find fault | Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application |
| Power | Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries |
| Other battery types supported | 4AA photo lithium, NIHM, NICAD |
| Qualification autotests | 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax |
|---|---|
| Wiremap | Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs. |
| Results storage | Up to 250 qualification test results |
| Battery life | 20 hours of typical use, without backlight |
| Dimensions and weight | 7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg) |
