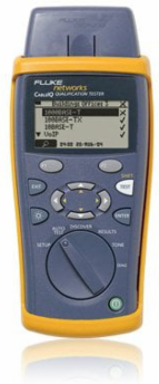

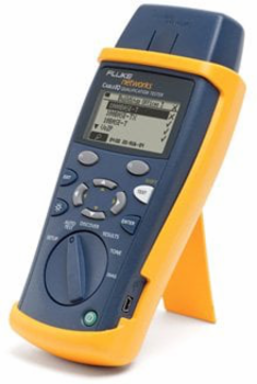

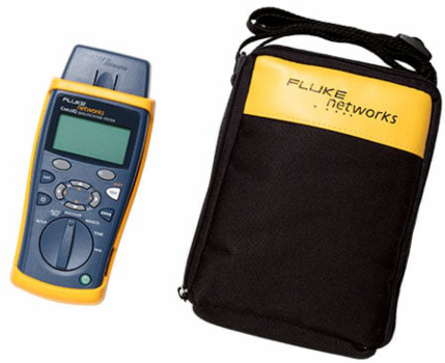

Fluke CIQ-SPKR CableIQ™ Qualification Tester
- MPN: CIQ-SPKR
- UPC: 754082032403
- PPN: FLU-CIQ-SPKR
CAD
$143.39
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The network tech's vision into cabling bandwidth CableIQ qualification tester is the first cabling bandwidth tester for network technicians. This Ethernet network cable testergives even the most novice tech the vision to see what speeds existing cabling can support, quickly isolate cabling from network problems, and discover what is at the far end of any cable. That means network techs can close trouble tickets faster, reduce on-call time, and save money by better utilizing their existing infrastructure. Reduce escalated problems by as much as 30% CableIQ qualification tester's powerful network troubleshooting capability and intuitive interface enable your frontline technicians to identify and troubleshoot a wider range of problems within your network infrastructure. Is the port active? Are the duplex settings matched? Is it a network problem or a Ethernet cable problem? Can the Ethernet cable support the required network bandwidth? CableIQ network analyzer is the only Ethernet cable tester that can answer all these questions before trouble tickets are escalated to the next level reducing problem escalation by up to 30%.
Documentation & Downloads
Specifications
General Specifications
| Cable types supported | UTP, STP, FTP, SSTP, RG6, RG59, audio and security |
|---|---|
| Supported tests | Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection. |
| Find fault | Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application |
| Power | Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries |
| Other battery types supported | 4AA photo lithium, NIHM, NICAD |
| Qualification autotests | 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax |
|---|---|
| Wiremap | Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs. |
| Results storage | Up to 250 qualification test results |
| Battery life | 20 hours of typical use, without backlight |
| Dimensions and weight | 7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg) |
