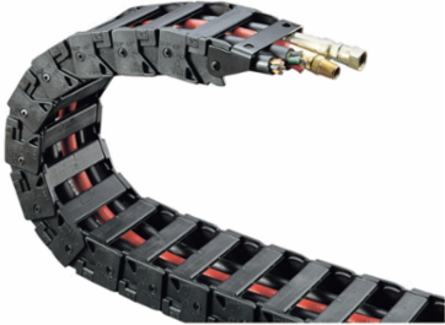

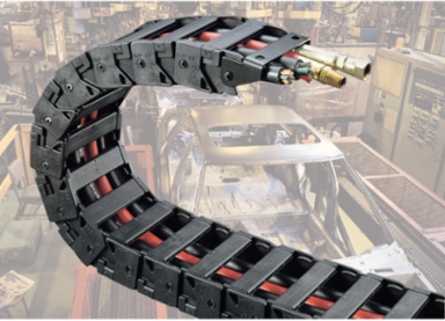

Hubbell Wiring Device-Kellems HCT161191 CableTrak Kit, 1 Foot, Nylon, Fiberglass Reinforced, 1.35 Inch Wire Size
- MPN: HCT161191
- UPC: 783585343389
- PPN: HBL-HCT161191
- UNSPSC: 39131712
CAD
$77.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CableTrak Kits less Brackets, 1', 161 Series
Features

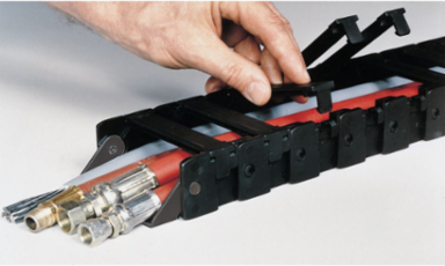

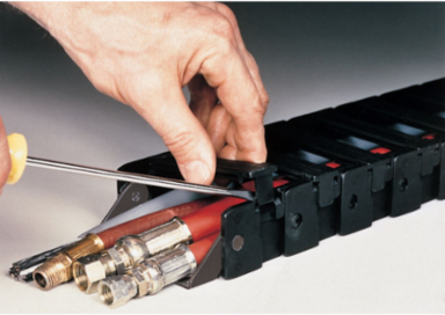

- Flip top link design
- Fiberglass reinforced nylon construction
- Highly wear resistant design provides corrosion resistance
- Standard Product
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Application | Cable and Hose Carrier |
| Special Features | Standard Product |
| Wire Size | 1.35" |
| Engineering Drawing 1 Display Text | HCT161191 AutoCAD Drawing |
| Display Size | Standard Sized |
| Description - Invoice | C-TRAK, EXT KIT, 1', 1.35" MAX DIA, .38" |
| Harmonization Code | 3926909989 |
| MSDS Flag | No |
| Material | Nylon, Fiberglass Reinforced |
| BOX SIZE | 11.600x15.300x15.800 (in) |
| Carton - Number of Sub Packs | 6 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585343389 |
| Case Weight | 7.300 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 46.400 in |
| Pallet Weight | 204.400 lb. |
| NAICS Code | 3359323107 |
| Performance | Environmental - Max. Operating Speed - 600 FPM (feet per minute), 180 MPM (meters per minute).;Environmental - Max. Unsupported Travel Distance - HCT16 Series without sag 9 ft. (2.8 m) with sag 10.5 ft. (3.2 m);HCT25 Series without sag 13.5 ft. (4.1 m) with sag 17 ft. (5.2 m);Environmental - Operating Temperature - Continuous +20°F to +100°F (-7°C to 38°C);Intermittent* -40°F to +220°F (-40°C to 104°C). |
|---|---|
| Color | Black |
| Width | 1.5 in |
| Weight | 0.85 lb. |
| Connectivity | Snap Together Sections |
| Class Code | A28 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A28A310 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 6.5 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 6 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585343388 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
