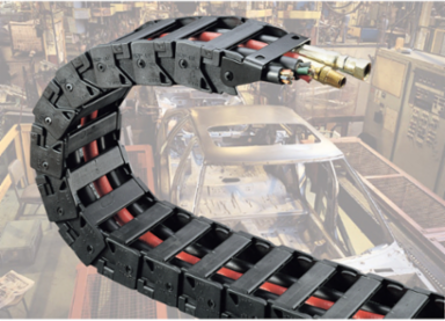

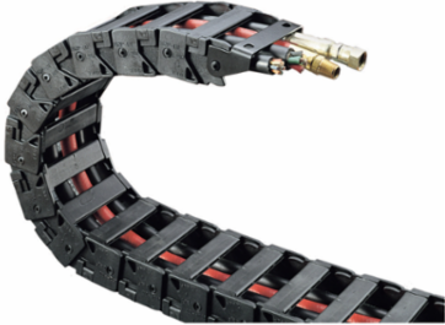

Hubbell Wiring Device-Kellems HCT164341 CableTrak Kit 1' Black, 3.65" Wire Size, Nylon, Fiberglass Reinforced
- MPN: HCT164341
- UPC: 783585343525
- PPN: HBL-HCT164341
- UNSPSC: 39131712
CAD
$114.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CableTrak Kits less Brackets, 1', 163 Series
Features

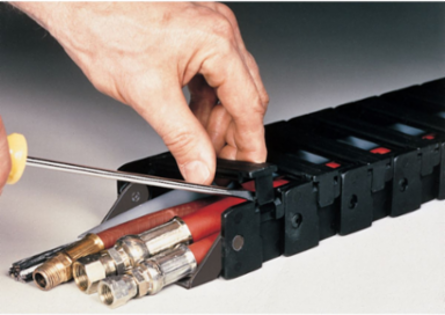

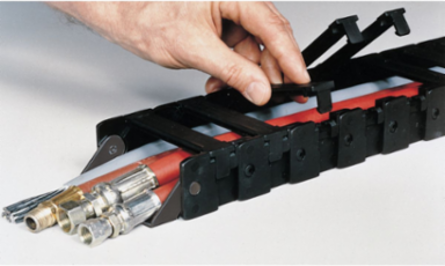

- Flip top link design
- Fiberglass reinforced nylon construction
- Highly wear resistant design provides corrosion resistance
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- Cable and Hose Carrier
- Special Features
- Standard Product
- Wire Size
- 3.654"
- Connectivity
- Snap Together Sections
- Class Code
- A28
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A28A310
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 6 EA
- Lowest Level UOM
- Each
PerformanceEnvironmental - Max. Operating Speed - 600 FPM (feet per minute), 180 MPM (meters per minute).;Environmental - Max. Unsupported Travel Distance - HCT16 Series without sag 9 ft. (2.8 m) with sag 10.5 ft. (3.2 m);HCT25 Series without sag 13.5 ft. (4.1 m) with sag 17 ft. (5.2 m);Environmental - Operating Temperature - Continuous +20°F to +100°F (-7°C to 38°C);Intermittent* -40°F to +220°F (-40°C to 104°C).
ColorBlack
Width4.06 in
Engineering Drawing 1 Display TextHCT164341 AutoCAD Drawing
Display SizeStandard Sized
Description - InvoiceC-TRAK, EXT KIT, 1', 3.65" MAX DIA, .68"
Harmonization Code3926909989
MSDS FlagNo
MaterialNylon, Fiberglass Reinforced
BOX SIZE10.700x15.300x15.400 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack783585343525
Each - Pack DescriptionEach
NAICS Code3359323107
