Weidmuller 2583880000 CABTITE SE 14-15 LRG BK
- MPN: 2583880000
- PPN: WDM-2583880000
CAD
$5.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

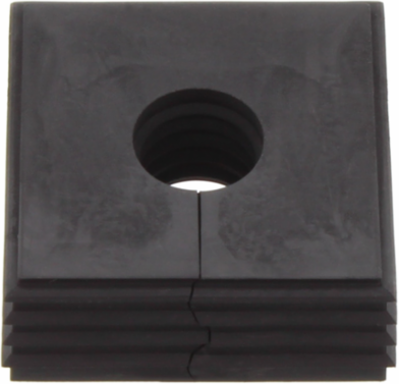

Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 42.8 mm, Width: 42.8 mm, Depth: 17.7 mm, -40 °C…120 °C, IP54, IP65, IP66
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E223801 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 42.8 mm |
|---|---|
| Height | 42.8 mm |
| Depth | 17.7 mm |
| Net weight | 28.7 g |
| Width (inches) | 1.685 inch |
|---|---|
| Height (inches) | 1.685 inch |
| Depth (inches) | 0.697 inch |
Classifications
| ETIM 6.0 | EC000879 |
|---|---|
| eClass 9.0 | 27-14-44-21 |
| eClass 10.0 | 27-14-44-21 |
| ETIM 7.0 | EC000879 |
|---|---|
| eClass 9.1 | 27-14-44-21 |
General Information
| UL 94 flammability rating | HB |
|---|---|
| Outer cable diameter, min. | 14 mm |
| Halogen | No |
| Material | TPE |
| Sealing element | 1 large sealing element |
|---|---|
| Outer cable diameter, max. | 15 mm |
| Silicone | No |
