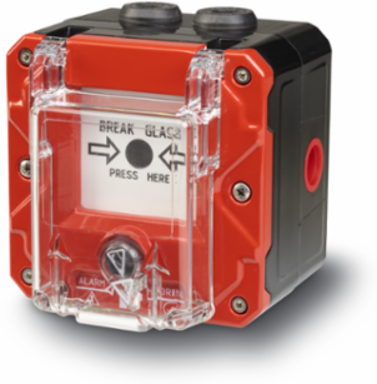

Federal Signal CP-BG-M-R-2-FNN-00-1 Call Point, International General Signaling, Break Glass, M20, Red, Dual Screw Terminal, Lift Flap, ATEX/IECEx, CE/UKCA, SIL2

MPN: CP-BG-M-R-2-FNN-00-1
UPC: 782979100324
PPN: FDS-CP-BG-M-R-2-FNN-00-1
UNSPSC: 46191505

$1731.46

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Call Point, International General Signaling, Break Glass, M20, Red, Dual Screw Terminal, Lift Flap, ATEX/IECEx, CE/UKCA, SIL2

Features

High visibility, antistatic GRP enclosure, faceplate available in Red and Yellow
Optional lift flap for two-step operation prevents accidental activation
(3) x M20 or ½ NPT entries: (2) top and (1) side entry with 180 degrees rotatable mounting orientation
Integrated tool reset with removable key for tamper resistant reset
Assembled with external 316 stainless steel hardware
Single and dual switch activation
Optional field installed stainless steel faceplate labels and duty labels
Optional module EOL resistors, series resistors, and supervisory diode
Type 4X, IP66 enclosure
IP69K compliant

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Width	2.19 in
Weight	2.08 lbs
Certification Listing	ATEX, CE, IECEx, SIL2, UKCA
Lift Flap	Yes
Operating Temp.	-40˚ to +158˚F (-40˚ to +70˚C)
Environmental Rating	Hazardous Location
Lead Time	Available in 4-6 Weeks

Length	4.06 in
Height	4.06 in
Body Color	Red
Availability	Available in 4-6 Weeks
Mount Type	Wall
Operating Voltage	48 Vdc
Enclosure Rating	IP66, IP69K, Type 4
Product Life Cycle Status	Completed
