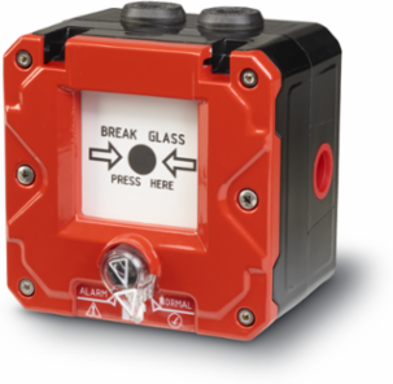

Federal Signal CP-BG-M-R-2-NNN-00-1 Call Point, International General Signaling, Break Glass, M20, Red, Dual Screw Terminal, No Lift Flap, ATEX/IECEx, CE/UKCA, SIL2
- MPN: CP-BG-M-R-2-NNN-00-1
- UPC: 782979100317
- PPN: FDS-CP-BG-M-R-2-NNN-00-1
- UNSPSC: 46191505
CAD
$1684.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Call Point, International General Signaling, Break Glass, M20, Red, Dual Screw Terminal, No Lift Flap, ATEX/IECEx, CE/UKCA, SIL2
Features
- High visibility, antistatic GRP enclosure, faceplate available in Red and Yellow
- Optional lift flap for two-step operation prevents accidental activation
- (3) x M20 or ½ NPT entries: (2) top and (1) side entry with 180 degrees rotatable mounting orientation
- Integrated tool reset with removable key for tamper resistant reset
- Assembled with external 316 stainless steel hardware
- Single and dual switch activation
- Optional field installed stainless steel faceplate labels and duty labels
- Optional module EOL resistors, series resistors, and supervisory diode
- Type 4X, IP66 enclosure
- IP69K compliant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.19 in
- Weight
- 2.08 lbs
- Certification Listing
- ATEX, CE, SIL2, UKCA, IECEx
- Lift Flap
- No
- Operating Temp.
- -40˚ to +158˚F (-40˚ to +70˚C)
- Environmental Rating
- Hazardous Location
- Lead Time
- Available in 4-6 Weeks
Length4.06 in
Height4.06 in
Body ColorRed
AvailabilityAvailable in 4-6 Weeks
Mount TypeWall
Operating Voltage48 Vdc
Enclosure RatingIP66, IP69K, Type 4
Product Life Cycle StatusCompleted
