Leviton RVCHM-L Camphead, Single Phase Loop Distribution Bus Bar, Metering
- MPN: RVCHM-L
- PPN: LEV-RVCHM-L
CAD
$3847.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

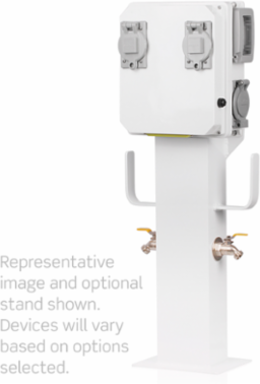

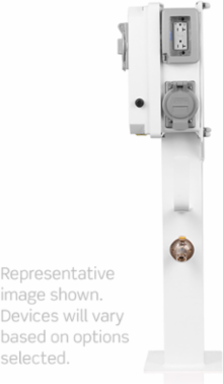

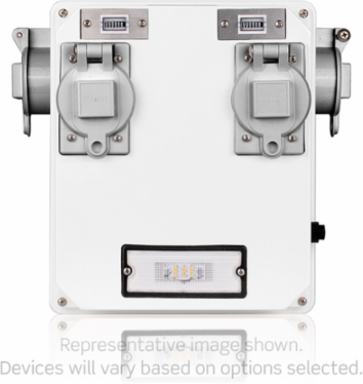

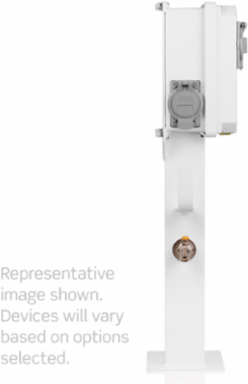

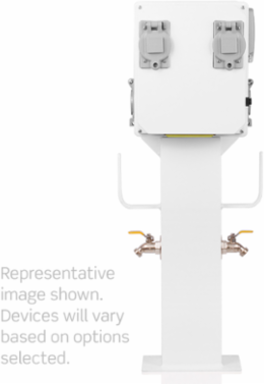

Power Pedestal for RV and Campsites; Camphead Base Includes 10"x12" Box with 20 Amp GFCI Receptacle with Standard Breaker, 30 Amp (125 Volt) RV Receptacle with Standard Breaker, 50 Amp (125/250 Volt) RV Receptacle with Standard Breaker, White LED w/ Photocell, and Gray Receptacle Covers. Includes Single Phase Loop Distribution Block Bus Bar, Dual Element Meter, and No Water Hookup
Features
- DURABLE - UL Listed and NEMA 4X Rated; Withstands corrosive environments with plastic resin housing for extended lifespan
- EASY INSTALLATION/MAINTENANCE - Simply mount pedestal and connect wiring
- FLEXIBLE - Available in a variety of configurations to suit any need, providing power, water, metering and lighting in one solution Stand sold separately: RVST , RVST1 , or RVST2
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Material Specifications
- Pedestal Material
- Fiberglass w/ UV protective finish
Mechanical Specifications
- Maximum Dimensions
- 10" x 12"
Product Features
- Application
- RV/Campsites
ColorWhite
Warranty
- Warranty
- Housing: 5-Year|Devices:1-Year
Standards & Certifications
- Certification/Listing
- UL-231, CSA 22.2 No. 29, NFPA 303, NFPA 70
