Square D PK7GTA QO Circuit Breaker Loadcentres, 73 mm Bar Length, UL Listed, CSA Certified
- MPN: PK7GTA
- UPC: 785901026372
- PPN: SCH-PK7GTA
CAD
$31.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

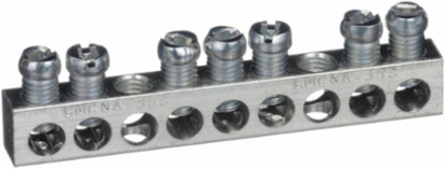

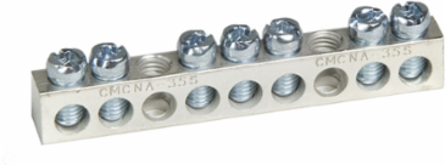

By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 7 number of circuits which accepts (1) 14 4 or (2) 14 or 12AWG copper or (1) 12 4 or (2) 12 or 10AWG aluminum.
Features
- The PK7GTA is a genuine Square D grounding bar kit designed to provide a low-resistance path for fault currents directly to the earth. By consolidating your equipment grounds into a single, secure termination point, it ensures your breakers trip instantly during a short circuit, preventing electrical fires and protecting sensitive downstream electronics.
- This kit is engineered specifically for use with QOTM and HomelineTM single-phase load centers, as well as NQ/NQOD panelboards. Because it is a factory-authorized Schneider Electric component, it mounts into pre-drilled holes in the enclosure, eliminating the need for dangerous field modifications or drilling that could void your UL listing.
- Featuring seven individual terminal ports, this bar accommodates a wide range of copper and aluminum conductors, typically accepting wire sizes from 14 4 AWG. This versatility allows you to ground everything from small lighting circuits to larger sub-panel feeds or heavy-duty appliance lines within a single, organized terminal strip.
- Designed with a slim, space-saving profile, the PK7GTA mounts flush against the back of the enclosure to maximize "wire-bending" room. This allows for cleaner cable management and better airflow inside the panel, making it much easier for electricians or DIYers to inspect connections and add new circuits in the future.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States

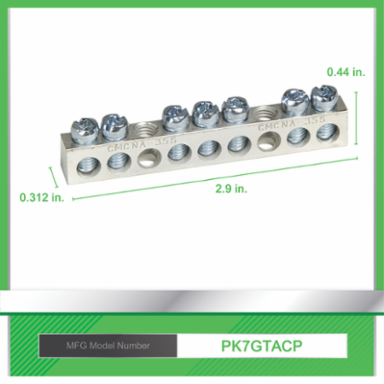

Depth0.312 in
Physical Attributes

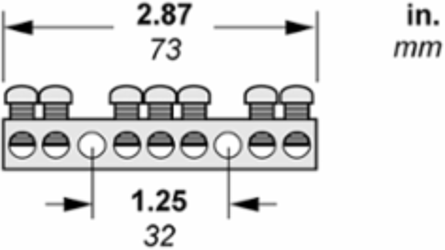

- Bar Length
- 73 mm
Complementary Attributes
- Maximum Length Of Segment
- 32 mm
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Tightening Torque
- 25 lb.in, 12 AWG...10 AWG, aluminium30 lb.in, mounting screw 30 lb.in, 20 lb.in, 14 AWG...10 AWG, copper20 lb.in, 12 AWG...10 AWG, aluminium35 lb.in, 6 AWG...4 AWG25 lb.in, 8 AWG, 25 lb.in, 14 AWG...12 AWG, copper
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- 2 screw
- Returnability
- Yes
- Height Nominal
- .437 in
- Package Weight(Lbs)
- 38.555 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...4 AWG copper12 AWG...4 AWG aluminium
Number Of Connectors7
Product Or Component Typebar
Range Of ProductQO
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- bar
- Range Of Product
- QO
Provided Equipment2 screw
ETIM
- ETIM 8
- EC000329
ETIM 9EC000329
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
