Mersen

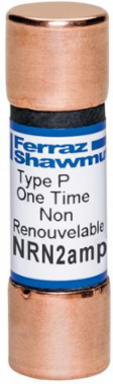

Mersen NRN2 Canadian Fuse 250V 2A Ferrule Mount Class H, 10kA, Non-time Delay, Clip Mount

Canadian Fuse 250V 2A Ferrule Mount Class H, 10kA, Non-time Delay, Clip Mount
  • MPN: NRN2
  • UPC: 068938999612
  • PPN: FER-NRN2

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$2.99/ EA

Description

Mersen NRN (250V) and NRS (600V) fuses are standard non-time delay fuses, with a 10kA short circuit rating. 250 Volt NRN 15 amp through 60 amp fuses are certified as Type "P" fuses, satisfying the Canadian Electrical Code for low melting-point non-time delay fuses. Also qualifying for Type "P" are OTN15 through OTN60, which are Class K-5 fuses with a 50kA short circuit rating (found in the OT/OTS section of this cata log).

Specifications

Specifications

Rated voltage AC UL
250 V
Ampere Rating
2 A
Fuse Class
Class H
AC Max I.R./Breaking Capacity: I1
10 kA
Connection/Terminal Type
Ferrule
Length
2 in
Frequency (Hz)50/60 Hz
AC or DCAC
MountingClip
Connection/Terminal MaterialCopper
Body/Insulating MaterialPaper
Weight0.04 lb
