Schneider Electric VW3CANTAP2 CANopen Junction Box with 2 RJ45 Connectors, IP20 Rating, Mercury Free
- MPN: VW3CANTAP2
- PPN: SCH-VW3CANTAP2
- UNSPSC: 39122001
CAD
$259.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

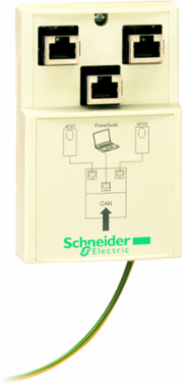

This junction box enables your product integration in CANopen machine bus. It is equipped with 2 screw terminal blocks for trunk cable tap link. It also has 2 x RJ45 connectors for connecting drives and 1 x RJ45 connector for connecting a PC. It has an IP20 protection index.
Features
- Easy to install
- IP20
- 2-in-1 RJ45 junction box
- Conforms to CANopen standard
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
Communications & Management Attributes
| Communication Port Protocol | CANopen |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Electrical Connection | 2 connectors RJ45 |
| Product Or Component Type | connector kit |
| Range Of Product | Altivar |
| Sustainable Packaging | No |
| Accessory / Separate Part Destination | CANopen bus |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Publishable Date | 2026-06-07 |
|---|---|
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Bus Type | CANopen |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | tap junction |
| Customs Code | 8536908530 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | connector kit |
|---|
| Range Of Product | Altivar |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
