RAB 081323 Canopy LED SCL1S-LED45A23 45A23W 120-347V Variable Temp Bronze Finish Dimmable
- MPN: 081323
- UPC: 061184813237
- PPN: RAB-081323
CAD
$133.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

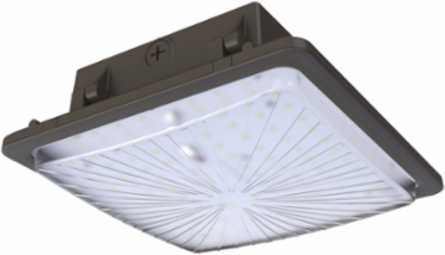

The SCL1S-LED is a general purpose canopy fixture ideal for covered walkways and outdoor canopy structures in strip malls, schools, condominiums and offices. This is a selectable unit with features including lumen adjustability, colour selection, and wide voltage range of 120-347V.
Features
- Rugged in design with die cast aluminum housing and polycarbonate lens.
- Selectable Unit – 120-347V, lumen adjustable, and colour selectable.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 11.2 Inches
- Lumens
- 6586
- Efficacy
- 140.8
- PF
- 0.9
- Surge Protection
- 6kV
- Lens
- Polycarbonate
- CCT
- VK
- Finish
- Bronze
Width5.1 Inches
Depth12.3 Inches
Watts46.76
Operating Temperature-40C to +40C
CRI74
LED life100,000 hours
MaterialsDie Cast Aluminum
Voltage120-347V
DimmableYes
