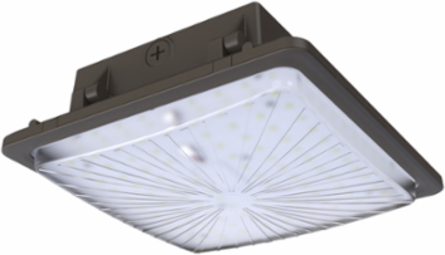

Rab 081324 Canopy LED SCL1S-LED70A45 70A45W 120-347V Variable Temp Bronze Finish Dimmable

MPN: 081324
UPC: 061184813244
PPN: RAB-081324

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$169.55/ EA

Qty:

Loading add to cart quantity...

Description

The SCL1S-LED is a general purpose canopy fixture ideal for covered walkways and outdoor canopy structures in strip malls, schools, condominiums and offices. This is a selectable unit with features including lumen adjustability, colour selection, and wide voltage range of 120-347V.

Features

Rugged in design with die cast aluminum housing and polycarbonate lens.
Selectable Unit – 120-347V, lumen adjustable, and colour selectable.

Specifications

Country of Origin: China

Height: 11.2 Inches

Lumens: 9593

Efficacy: 136.1

PF: 0.9

Surge Protection: 6kV

Lens: Polycarbonate

CCT: VK

Finish: Bronze

Width5.1 Inches

Depth12.3 Inches

Watts70.46

Operating Temperature-40C to +40C

CRI74

LED life100,000 hours

MaterialsDie Cast Aluminum

Voltage120-347V

DimmableYes
