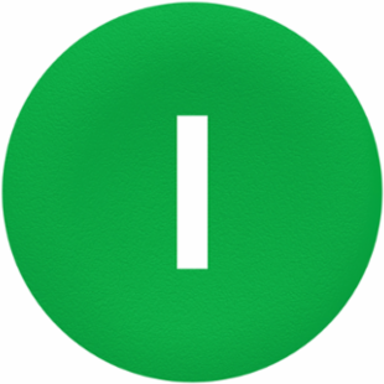

Schneider Electric ZBA7331 Harmony XB4 Green Marked Push Button Cap, 22mm, Round Shape
- MPN: ZBA7331
- PPN: SCH-ZBA7331
CAD
$9.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZB, green marked push button cap has a round shape with "I" symbol. This push button cap provides an ergonomic interface for controlling your machine. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Physical Attributes
- Cap Operator Or Lens Color
- green
Important Information Attributes
- Main Group
- triple head push-button, illum double head, wireless push-button, double head push-button
- Marking 1 Marking
- I
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0013655, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00047986, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Marking
- white I
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- User Language
- International
- Pep Code
- ENVPEP2312047EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Type
- marked push-button cap
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 1.3422
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 1.3422
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 1.0142
X C Menutriple head push-button, illum double head, wireless push-button, double head push-button
Accessory / Separate Part Destinationmultiple-headed push-button, wireless push-button head
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.026544
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.08258
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Operator Profileflush
Quantity Per Setset of 1
Sale Per Indivisible Quantity10
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
Cap Operator Or Lens Colorgreen
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis push button cap provides an ergonomic interface for controlling your machine. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Categorymarking accessory
Cap/Operator Or Lens Colourgreen
Package Weight(Lbs)0.500 g
Warranty (In Months)18
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]79.172
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1.3702
Customs Code8538906000
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.11096936
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2312047EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2312047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
ETIM
- ETIM 8
- EC001072
ETIM 9EC001072
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
