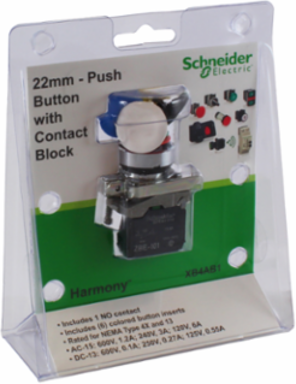

Schneider Electric XB4AB1 Harmony XB4 Push Button 22mm, IP66, 6 Color Caps, Spring Return
- MPN: XB4AB1
- UPC: 785901553236
- PPN: SCH-XB4AB1
CAD
$36.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This push-button provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth52 mm
Physical Attributes
- Cap Operator Or Lens Color
- 6 colors choice
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Operating Travel
- 2.6 mm NO changing electrical state), 4.3 mm total travel)
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Certificate Agency
- CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0177848636, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0272774377, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0.1 kg CO2 eq., 0.061755
- Local Publishable Date
- 2026-01-12
- Future Imap
- 18.56
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2308035EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- chromium plated metal
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO
- Device Short Name
- XB4
- Mechanical Durability
- 5000000 cycles
- Operating Force
- 3.8 N NO changing electrical state
- Overvoltage Category
- class I conforming to IEC 60536
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- spring return
- Contacts Composition
- 1 NO
- Operator Profile 1 Marking
- unmarked
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Width Nominal
- 30 mm
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- 6 colors choice
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1.3326
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1.5759
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Cap Operator Or Lens Color6 colors choice
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1720246738
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 0.9639705813
Local Data StatusPublishable
Return IndicatorY
Future Msrp24.03
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Fixing Collar Materialzamak
Mounting Diameter22.5 mm
Operator Profile6 colors choice flush, unmarked
Positive Openingwithout
Product Or Component Typepush-button
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals 8 Connections Terminalsscrew clamp terminals
Pep CodeENVPEP2308035EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Height Nominal47 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)0.136 kg
Warranty (In Months)18
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.3326
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.3326
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- UL type 4X/13, NEMA 13, NEMA 4X
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308035EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint1.2428125563
Environmental DisclosureENVPEP2308035EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308035EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Overview Attributes
- Device Presentation
- complete product
