Lutron

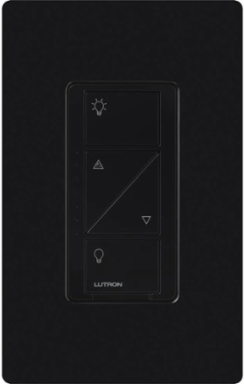

Lutron PD-10NXD-BL-C Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black

Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black
Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black
Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black
Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black
Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black
Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black
Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black
Caseta PRO Wireless In-Wall Dimmer Switch, 1000W for Incandescent/Halogen, Black
  • MPN: PD-10NXD-BL-C
  • UPC: 784276146197
  • PPN: LUT-PD-10NXD-BL-C
  • UNSPSC: 39122206

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$160.75/ EA

Description

The Lutron Caseta In-Wall Smart Dimmer Switch PRO is UL listed to work with up to 250W of dimmable LED, or 1000W Incandescent/Halogen bulbs. The Caseta Dimmer Switch PRO is also compatible with LEDs with integrated drivers, magnetic low-voltage loads, as well as Phillips Mark 10® ballasts and Lutron Hi-Lume 1% 2-Wire (LTE) LED drivers. Neutral wire connection is optional for standard LED bulbs, but required for MLV loads, LED drivers, dimmable ballasts, and power modules. Minimum load with neutral connected is 10W, without neutral is 25W. Pair a Lutron Pico Remote Control (PJ2-3BRL-Gxx-L01) to the Caseta dimmer switch PRO and mount it anywhere to dim the lights from any location using the Pico wall box adapter (PICO-WBX-ADAPT); Pico Remote and wall box adapter sold separately. The Caseta Smart Dimmer PRO can be used in single pole and 3-way applications (when wired to existing 3-way switches). A Pico Remote control is required to create 4-way or multi-location applications. Use the Lutron Smart Hub to connect the Caseta Smart Dimmer Switch PRO to leading smart home devices - including Alexa, Apple Home, Google Home, Ring, Sonos, and more. The smart hub doesn't rely on Wi-Fi to control lights which avoids slowing down internet speeds and allows you to stay connected even when the Wi-Fi goes down. The hub also unlocks advance features like Smart Away which randomly turns lights on and off, to make it look like you're at home, even if you're away (Lutron Smart Hub, L-BDG2-WH required). Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features

  • Includes: One (1) Lutron Caseta in-wall dimmer switch PRO; Gloss finish
  • Works with up to 250W of dimmable LED or 1000W of MLV/Incandescent/Halogen; 120V
  • Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable ballasts, and Hi-Lume 1% LED drivers, and Lutron power boosters
  • Dim from up to 10 locations by pairing the dimmer to a mountable Lutron Pico remote (PJ2-WALL-WH-L01 sold separately); Can be wired to existing 3-way switches (CA-3PS-XX)
  • Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more

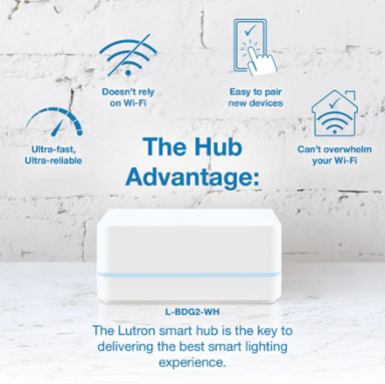

  • Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls); 60ft direct line-of-sight or 30ft through walls of a Lutron Smart Hub
  • Pair up to ten (10) Lutron Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta dimmer switch (limitations reflect when no Lutron Smart Hub installed)

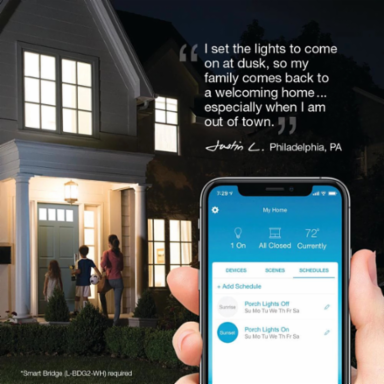

  • Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH required for phone and voice assistant control)
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates sold separately)
  • Controls 250 W LED (screw-base), 1000 W incandescent/halogen, 1000 VA (800 W) magnetic low-voltage, 520 W Hi-lume 1 percent 2-wire LED driver, or 5 A Tu-Wire fluorescent ballast loads
  • Simple, intuitive design with on, off and raise/lower buttons
  • Provides true dimming from each location with Pico wireless remotes
  • Offers reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents

Specifications

Specifications

Application
Lighting Control
Frequency Rating, Minimum
50 Hz
Type
Wireless in-wall dimmer, multi-location/3-way/single-pole
Wattage
1000 W
Connection Type
Wire Leads
Switch Type
Push Button
Number of Poles
1
Frequency Rating
50 to 60 Hz
Insulation
Plastic
Finish
Gloss
Connection
Wire Leads
Mounting
Wallbox
Operating Temperature
32 to 104 F
Aesthetic FinishGlossy
Operating Temperature, Maximum104 F
Voltage Rating120
Operating Temperature, Minimum32 F
Family ColorBlack
Decorative ColorBlack
Face MaterialMetal;Plastic
Size4.69 x 2.94;119 x 75 in;mm
EnclosurePlastic
ActuatorPush-button
MaterialPlastic/Metal
ColorBlack

Downloads
