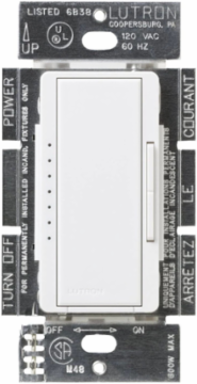

Lutron MA-1000-WH-CSA Smart Dimmer 1000W 120V, Multi-Location, Glossy White Finish
- MPN: MA-1000-WH-CSA
- UPC: 027557703987
- PPN: LUT-MA-1000-WH-CSA
- UNSPSC: 39122206
CAD
$145.70
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart Dimmer 1000W 120V, Multi-Location, Glossy White Finish
Features
- Controls 1000 W incandescent or halogen loads. Provides true dimming from each location (with companion dimmers).
- High-tech "Smart Dimmer" with microprocessor technology for a standard designer wallplate opening
- Features a clean,flush,stylish appearance
- Special Features! Two taps on the switch brings lights on to full brightness; press and hold the switch to slowly fade lights to off over 10 seconds
- LED's indicate light level and glow softly as a locator light in the dark
- Multi-location dimming from up to 10 locations
- Uses standard single-pole and 3-way wiring for easy installation in any home
- Controls 1000 W incandescent or halogen loads
- Provides true dimming from each location (with companion dimmers)
- Controls 1000 W incandescent or halogen loads. Provides true dimming from each location (with companion dimmers).
Documentation & Downloads
Specifications
Key Specifications
| Aesthetic Finish | Glossy |
|---|---|
| Decorative Color | White |
| Family Color | White |
| Number of Poles | 1 |
| Operating Temperature, Minimum | 32 F |
| Type | Digital fade dimmer, multi-location/3-way/single-pole |
| Wattage | 1000 W |
| Face Material | Metal;Plastic |
| Actuator | Tapswitch |
| Connection | Screw terminal |
| Finish | Gloss |
| Material | Plastic/Metal |
| Operating Temperature | 32 to 104 F |
| Application | Lighting Control |
|---|---|
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| Frequency Rating, Minimum | 50 Hz |
| Operating Temperature, Maximum | 104 F |
| Switch Type | Tapswitch |
| Voltage Rating | 120 |
| Connection Type | Screw Terminal |
| Frequency Rating | 50 to 60 Hz |
| Color | White |
| Enclosure | Plastic |
| Insulation | Plastic |
| Mounting | Wallbox |
| Size | 4.69 x 2.94;119 x 75 in;mm |
