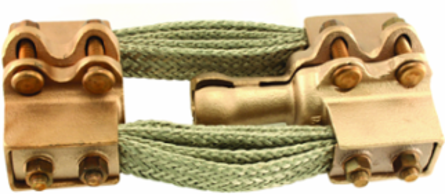

Burndy XP1919 Cast Copper Alloy Tube to Tube Coupler, 2-1/2 Inch IPS, 13 Inch Length
- MPN: XP1919
- UPC: 781810005057
- PPN: BUR-02004495
CAD
$2202.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cast Copper Alloy Expansion Coupler , 2-1/2 IN IPS, 13.00 IN L
Documentation & Downloads
Specifications

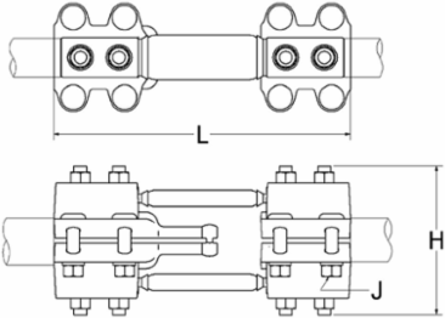

Dimensions
- Dimension - Height inch
- 8.50 in
- Dimension - Length BB inch
- 4.00 in
Dimension - L Length Overall mm330 mm
Dimension - Length Overall inch13.00 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Connection Combination
- Tube to Tube
- Conductor - Copper Tube Std Size Range
- 2 1/2 IPS
Conductor - Copper Tube Std Size2 1/2 IPS
Conductor TypeCU Tube Std-Size
General
- Application
- Substation
- Installation Torque Recommended in-lb
- 480 in-lb
- Material - Hardware
- DURIUM™ Silicon Bronze
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Pad Orientation
- Straight
- Plating Type
- Unplated
- UPC
- 781810005057
Connector TypeCouplers
MaterialCopper Alloy
One Wrench InstallationY
Physical Attribute - Number of Tap Conductors1
PlatedN
TypeTube to Tube Couplers
UPC 12 Digit7818100050577
Electrical Ratings
- Rating - KVA
- 230 kV
Logistics
- Minimum Pack Quantity
- 1
