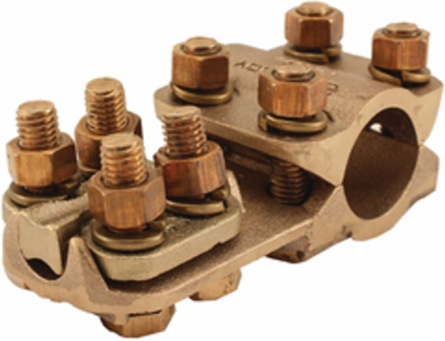

Burndy NHNT1729 Substation T Connectors
- MPN: NHNT1729
- UPC: 781810003145
- PPN: BUR-02002011
- UNSPSC: 39121456
CAD
$534.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Cast Cu Alloy T Connector, 6.76 IN L, 2.44 IN W, Bolted, Cu Tube to Cable, 1-1/2 IN IPS/EHPS (Run), 6 AWG-250 KCMIL (Tap), 1/2 IN-13 Bolt Size Dia, 230 kV.
Features
- Type NHNT for Copper Tube to Cable T Application
- High copper alloy reversible T-Connector for joining a wide range of run pipe and tap cables
- One-wrench installation
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Copper Solid Tap
- 5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Tube Std Run
- 1 1/2 IPS
- Dimension - B Length fraction
- 2-69/100 in
- Dimension - Height fraction
- 2-7/10 in
- Dimension - L Length Overall mm
- 172 mm
- Dimension - Length Overall inch
- 6.76 in
- Dimension - Width inch
- 2.44 in
- Installation Torque Recommended in-lb
- 480 lb-in
- Physical Attribute - Number of Run Conductors
- 1
- Plated
- N
- Product Type
- Mechanical
- Application
- Substation
- Conductor Type
- CU Tube Std-Run;CU C Str-Run;CU C Solid-Run;CU C Str-Tap;CU C Solid-Tap
- Certification Agency
- Proposition 65
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- Replaced Catalog Number
- NHNT1729
- UL Listed
- No
- Material - Hardware
- DURIUM™ Silicon Bronze
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810003145
- Pallet - GTIN - Package
- 70781810003144
- Standard Package Quantity
- 1
Conductor - Connection CombinationTube to Cable
Conductor - Copper Solid Tap Range5 AWG-4/0 AWG
Conductor - Copper Str Tap Range6 AWG-250 kcmil
Conductor - Copper Tube Std Run Range1 1/2 IPS
Dimension - B Length inch2.69 in
Dimension - Height inch2.70 in
Dimension - Length BB inch2.62 in
Dimension - Width fraction2-11/25 in
Dimension - Width mm62 mm
One Wrench InstallationY
Physical Attribute - Number of Tap Conductors1
Plating TypeUnplated
Standards - RoHS Compliance StatusEX
TypeTube to Cable Couplers
Connector TypeT-Connector
Class CodeB21
Harmonization Code8535908020
Lead Time12 wk
Sub Class CodeB21B0OF
MaterialCopper Alloy, Cast
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Weight0.000 lb.
NAICS Code3359319102
Certifications
- CSA Approved
- No
- ETL
- No
cULusNo
UL RecognizedNo
