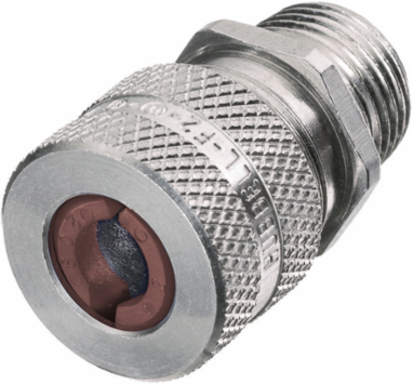

Hubbell Wiring Device-Kellems SHC1024 Straight Male Cord Connector, 0.50-0.63 Inch, Aluminum, NEMA Type 4
Hubbell Wiring Device-Kellems SHC1024 Straight Male Cord Connector, 0.50-0.63 Inch, Aluminum, NEMA Type 4
- MPN: SHC1024
- UPC: 783585200248
- PPN: HBL-SHC1024
- UNSPSC: 39121431
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$20.69/ EA
Description
Kellems Wire Management, Cord Connectors, Straight Male, .50-.63", 1/2", Aluminum
Features
- Aluminum cord connector provides durable performance
- Knurled finish makes them easy to handle and maintain UL listing by hand tightening
- Lightweight design
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- SHC1024 AutoCAD Drawing
- Country of Origin
- China
- Hub Size
- 1/2 "
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Application
- Straight Male- Form 2
- Conductor Range
- 0.5-0.63 in (12.7- 15.9 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Multi-Hole Cord Grip Connectors
- Display Size
- 1/2" NPT
- Number Of Conductors
- Single
- Description - Invoice
- CORD CONN, STR ML, .50-.63", 1/2", ALUM
- Harmonization Code
- 8546909900
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Cord Diameter
- 0.50-0.63 in
- Series
- Standard Duty Series
- BOX SIZE
- 4.800x8.500x5.600 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585200248
- Case - Total Units
- 200 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585200247
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 3 Display TextPulp & Paper Solutions
Width1.120 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ColorMetallic
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
TypeStraight Male
General Literature Asset 2 Display TextWire Management Solutions Brochure
Nema RatingNEMA Type 4, 4X, 12 and 13
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A490
Color CodeBrown
MaterialMachined Aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Case Weight6.414 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight1180.000 lb.
Certifications
- EU RoHS Indicator
- Yes
