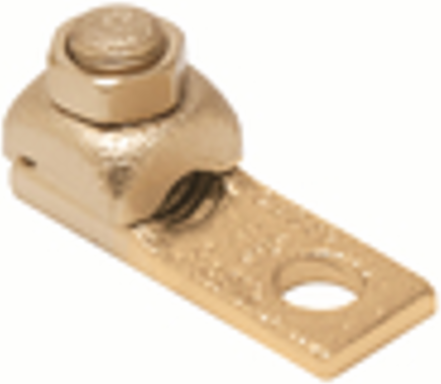

Burndy QB31-2N Cast Cu Alloy Terminal; 2 Pad Holes; 250 kcmil - 350 kcmil; 4.50 IN L; 1.19 IN W; 9/16-18 IN Bolt
- MPN: QB31-2N
- UPC: 781810324660
- PPN: BUR-02003002
CAD
$241.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Cu Alloy Terminal; 2 Pad Holes; 250 kcmil - 350 kcmil; 4.50 IN L; 1.19 IN W; 9/16-18 IN Bolt
Specifications
Key Specifications
| D - in | 3.25 |
|---|---|
| Installation Torque | 325 |
| B Length (Fraction) | 1-15/79 |
| CULUS | N |
| Connector Type | Terminal |
| Stud Size (in) | 1/2 |
| Copper Solid Size (Range) | N/A |
| Thickness | 0.31 |
| B Length (in) | 1.19 |
| Industry Standards | UL468A-468B |
| Number of Conductors | 1 |
| Height (in) | 1.69 |
| Length (in) | 4.50 |
| Stud Size (Fraction) | 1/2 |
| CSA Certified | N |
| Pad Width (in) | 1.19 |
| Number of Clamping Elements | 1 |
| D or Diameter (Fraction) (in) | 3-1/4 |
|---|---|
| Width (in) | 0.81 |
| Number of Holes | 2 |
| Product Material | Copper |
| UPC | 781810324660 |
| Height (Fraction) (in) | 1-11/16 |
| Length (Fraction) | 4-1/2 |
| Thickness (in) | 5/16 |
| Copper Stranded (Range) | 250-350 |
| Plated (Yes or No) | N |
| Type of Plating | Unplated |
| Product Description | Cast Cu Alloy Terminal; 2 Pad Holes; 250 kcmil - 350 kcmil; 4.50 IN L; 1.19 IN W; 9/16-18 IN Bolt |
| E - in | 1.75 |
| ROHS Compatible | Exempt |
| UL Listed | Y |
| UL Recognized | N |
