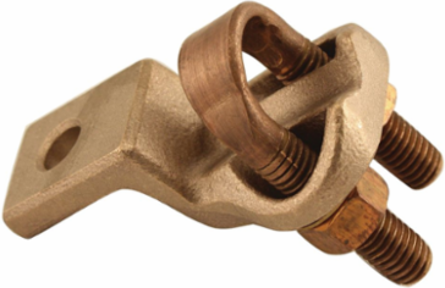

Burndy VA402N VARILUGTM Bolted V Type Terminal for 500-800 kcmil Cable, 1/2 Inch Stud Size, 1.62 x 3 Inch Pad

MPN: VA402N
UPC: 781810078402
PPN: BUR-50062763
UNSPSC: 39121408

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Bolted V Style.

Features

Type VA Copper V Type Terminal is a high copper alloy terminal for joining a wide range of cable to equipment pads or bar
Particularly suitable for use on extra flexible cable
One-wrench installation

Specifications

Key Specifications

Country of Origin	United States
Conductor - Connection Combination	Cable to Flat
Conductor - Copper Str Size Range	500 kcmil-800 kcmil
Dimension - D inch	3.00 in
Dimension - Height fraction	2-7/8 in
Dimension - Hole Size fraction	9/16
Dimension - L Length Overall mm	148 mm
Dimension - N inch	0.62 in
Dimension - Pad Width inch	1.62 in
Dimension - Width fraction	1-5/8 in
Dimension - Width mm	67 mm
Industry Standard(s)	UL 486A-486B
One Wrench Installation	Y
Physical Attribute - Number of Holes	2
Physical Attribute - Pad Configuration	1.62 x 3 - 2 holes
Plated	N
Product Type	Mechanical
Standards - RoHS Compliance Status	EX
Application	Substation
Number of Conductors/Ports (Main/Primary)	1
Type	Bolted Lugs & Terminals
Connector Type	Terminal
Certification Agency	Proposition 65
Freight Class Code	16027000
Image Actual Or Representative	A
Sub Class Code	B21B03F
Material	Copper Alloy
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	1
Package - GTIN - Package	30781810078403
Package Quantity	12 EA
Pallet - GTIN - Package	70781810078401
Standard Package Quantity	12

Clamping Element Design	V Bolt
Conductor - Copper Str Size	500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil
Dimension - B Length inch	1.34 in
Dimension - F Width Center to Center inch	1.75 in
Dimension - Height inch	2.88 in
Dimension - Hole Size inch	0.56 in
Dimension - Length Overall inch	5.81 in
Dimension - Pad Size inch	1.62 x 3
Dimension - Stud Size inch	1/2
Dimension - Width inch	2.62 in
Width	5.800 in
Installation Torque Recommended in-lb	500 LBS/in
Physical Attribute - Number of Clamping Elements	1
Physical Attribute - Pad Alignment	Offset
Physical Attribute - Pad Orientation	Straight
Plating Type	Unplated
Standards - Industry Standards Met	UL 486A-486B
Trade Name	VARILUG™
Number of Conductors	1
Standard	UL 486A-486B
Conductor Type	CU C Str-Size
Number Of Conductors	1
Class Code	B21
Harmonization Code	8535908020
Lead Time	12 wk
UL Listed	Yes
Material - Hardware	DURIUM™ Silicon Bronze
BOX SIZE	6.500x6.200x7.250 (in)
Carton - Number of Sub Packs	1
Carton - SCC-14 Next Lower Level Sub Pack	00781810078402
Case - SCC-14 Next Lower Level Sub Pack	30781810078403
Package - Total Units	12 EA
Package Weight	0.000 lb.
Pallet Weight	0.000 lb.
NAICS Code	3359319102
