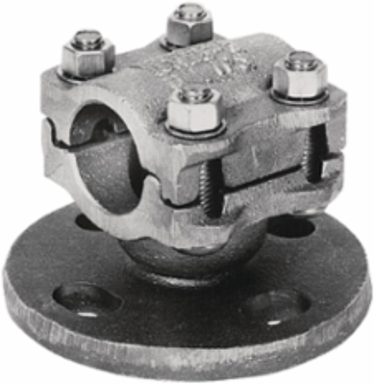

Burndy UH153W Copper Alloy Bus Support with 1 IPS Size, 3 Inch Bolt Diameter, Slip/Rigid Fit
- MPN: UH153W
- UPC: 781810119754
- PPN: BUR-50079565
- UNSPSC: 39121408
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Cu Alloy Bus Support-Complete Part, 1" IPS, 3" Bolt Dia, 3/8" Bolt.
Features
- Type UH Copper Bus Supports for Supporting Copper Tube to Base
- High copper alloy bus support for mounting tube on a post or pedestal type insulator
- Single bolt allows rotation to any angle
- Rotate cap 180 degrees for slip or rigid fit
- Supplied with hardware for mounting to cap of insulator
- Suffix -B on the catalog number denotes base mounting hardware is supplied
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Copper Tube EH Size
- 1 IPS
- Conductor - Copper Tube Std Size
- 1 IPS
- Dimension - B Length inch
- 2.50 in
- Dimension - Height inch
- 3.00 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Width mm
- 73 mm
- Hardware Type
- Cap mounting kit (w/o nuts)
- One Wrench Installation
- Y
- Plating Type
- Tin - Hot Dipped
- Standards - RoHS Compliance Status
- EX
- Number of Conductors
- 1
- Type
- Cable or Tube to Insulator Bus Supports
- Connector Type
- Bus Support
- Certification Agency
- Proposition 65
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- Sub Class Code
- B21B01F
- Mounting Hardware
- 1/2-13 x 1" LG
- Bolt Circle Diameter
- 3.00 in
- Material - Hardware
- DURIUM™ Silicon Bronze
- BOX SIZE
- 5.000x5.000x6.500 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810119754
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810119755
- Package - Total Units
- 2 EA
- Package Weight
- 0.000 lb.
- Pallet Weight
- 0.000 lb.
- NAICS Code
- 3359319102
Conductor - Connection CombinationBase to Tube
Conductor - Copper Tube EH Size Range1 IPS
Conductor - Copper Tube Std Size Range1 IPS
Dimension - G inch2.00 in
Dimension - Hole Size fraction9/16
Dimension - Width inch2.88 in
Width4.500 in
Installation Torque Recommended in-lb240 in-lb
PlatedY
Product TypeMechanical
ApplicationSubstation
Number of Conductors/Ports (Main/Primary)1
Conductor TypeCU Tube Std-Size;CU Tube EH-Size
Number Of Conductors1
Class CodeB21
Harmonization Code8535908060
Lead Time12 wk
Fitting TypeSlip or Rigid
UL ListedNo
MaterialCopper Alloy
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Package - GTIN - Package30781810119755
Package Quantity2 EA
Pallet - GTIN - Package70781810119753
Standard Package Quantity2
Certifications
- CSA Approved
- No
- ETL
- No
cULusNo
UL RecognizedNo
