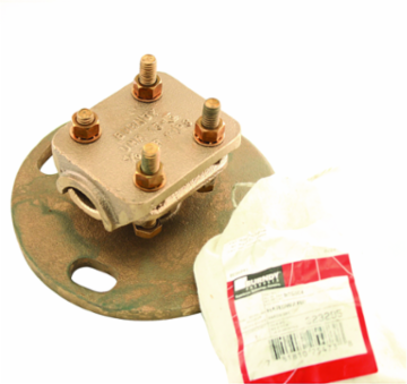

Burndy UHR133W Cast Copper Alloy Bus Support, 6 AWG - 500 Kcmil, 1/8" - 1/2" IPS, 3.00" Bolt Circle
- MPN: UHR133W
- UPC: 781810119747
- PPN: BUR-02003919
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Cu Alloy Bus Support with Tin Plated Assembly and Tin Plated Hardware, CU Str. Size: 6 AWG - 500 Kcmil, CU Pipe Size: 1/8"-1/2" IPS, 3 IN Bolt Circle Dia
Documentation & Downloads
Specifications
Dimensions
- Bolt Circle Diameter
- 3.00 in
- Dimension - G inch
- 1.75 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Width inch
- 2.25 in
Dimension - B Length inch3.56 in
Dimension - Height inch3.00 in
Dimension - Hole Size inch0.56 in
Dimension - Width mm57 mm
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Connection Combination
- Base to Tube or Cable
- Conductor - Copper Str Size Range
- 6 AWG-500 kcmil
- Conductor - Copper Tube Std Size Range
- 1/8 IPS IPS-1/2 IPS IPS
Conductor - Copper Str Size6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
Conductor - Copper Tube Std Size1/8 IPS IPS;1/4 IPS IPS;3/8 IPS IPS;1/2 IPS IPS
Number Of Conductors1
General
- Application
- Substation
- Fitting Type
- Rigid Conduit
- Installation Torque Recommended in-lb
- 240 in-lb
- Material
- Copper Alloy
- Mounting Hardware
- 1/2 X 1" Hot Dipped Galv. Steel Hex. Head Bolts
- Plated
- Y
- Type
- Cable or Tube to Insulator Bus Supports
- UPC 12 Digit
- 7818101197477
Connector TypeBus Support
Hardware TypeCap mounting kit (w/o nuts)
Item Type4D
Material - HardwareDURIUM™ Silicon Bronze
One Wrench InstallationY
Plating TypeTin - Hot Dipped
UPC781810119747
Electrical Ratings
- Rating - KVA
- 230 kV
