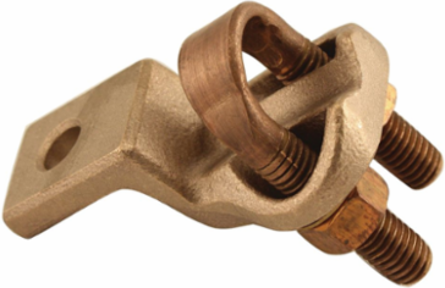

Burndy VA30 VARILUG Terminal, Bolted, Copper Alloy, 1/0 AWG - 300 Kcmil, 0.44 Inch Hole Dia.
- MPN: VA30
- UPC: 781810005484
- PPN: BUR-50079814
- UNSPSC: 39121408
CAD
$2844.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Cu Alloy VARILUG Terminal, Bolted, 1/0 Str - 300 Kcmil, 1 Pad Hole, 0.44" Hole Dia.
Features
- Type VA Copper V Type Terminal is a high copper alloy terminal for joining a wide range of cable to equipment pads or bar
- Particularly suitable for use on extra flexible cable
- One-wrench installation
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Conductor - Connection Combination | Cable to Flat |
| Conductor - Copper Solid Size Range | 1/0 AWG-4/0 AWG |
| Conductor - Copper Str Size Range | 1/0 -300 kcmil |
| Dimension - D inch | 1.09 in |
| Dimension - Height inch | 1.22 in |
| Dimension - Hole Size inch | 0.44 in |
| Dimension - Length Overall inch | 3.22 in |
| Dimension - Pad Size inch | 1.13 x 1.09 |
| Dimension - Stud Size inch | 3/8 |
| Dimension - Width inch | 1.91 in |
| Width | 1.950 in |
| Installation Torque Recommended in-lb | 325 LBS/in |
| Physical Attribute - Number of Clamping Elements | 1 |
| Physical Attribute - Pad Alignment | Offset |
| Physical Attribute - Pad Orientation | Straight |
| Plating Type | Unplated |
| Standards - Industry Standards Met | UL 486A-486B |
| Trade Name | VARILUG™ |
| Number of Conductors | 1 |
| Standard | UL 486A-486B |
| Conductor Type | CU C Str-Size |
| Number Of Conductors | 1 |
| Class Code | B21 |
| Harmonization Code | 8535908020 |
| Lead Time | 12 wk |
| UL Listed | Yes |
| Material - Hardware | DURIUM™ Silicon Bronze |
| BOX SIZE | 12.000x12.000x12.000 (in) |
| Carton - Number of Sub Packs | 12 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00781810005484 |
| Case - SCC-14 Next Lower Level Sub Pack | 30781810005485 |
| Package - Total Units | 12 EA |
| Package Weight | 0.000 lb. |
| Pallet Height | 40.500 in |
| Pallet Weight | 373.320 lb. |
| Standard Package Quantity | 12 |
| Clamping Element Design | V Bolt |
|---|---|
| Conductor - Copper Solid Size | 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Str Size | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil |
| Dimension - B Length inch | 1.09 in |
| Dimension - Height fraction | 2-3/16 in |
| Dimension - Hole Size fraction | 7/16 |
| Dimension - L Length Overall mm | 82 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 1.13 in |
| Dimension - Width fraction | 1-1/8 in |
| Dimension - Width mm | 49 mm |
| Industry Standard(s) | UL 486A-486B |
| One Wrench Installation | Y |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Pad Configuration | 1.13 x 1.09 - 1 hole |
| Plated | N |
| Product Type | Mechanical |
| Standards - RoHS Compliance Status | EX |
| Application | Substation |
| Number of Conductors/Ports (Main/Primary) | 1 |
| Type | Bolted Lugs & Terminals |
| Connector Type | Terminal |
| Certification Agency | Proposition 65 |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Sub Class Code | B21B03F |
| Material | Copper Alloy |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 9.120 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 12 |
| Package - GTIN - Package | 30781810005485 |
| Package Quantity | 12 EA |
| Pallet - GTIN - Package | 70781810005483 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| NAICS Code | 3359319102 |
Certifications
| CSA Approved | No |
|---|---|
| ETL | No |
| cULus | No |
|---|---|
| UL Recognized | No |
