Burndy

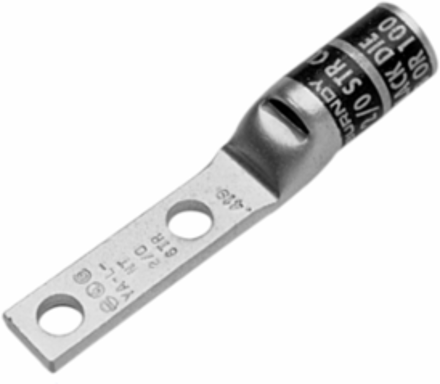

Burndy YA38L2NNTFX Copper YA38L2NNTFX

Copper YA38L2NNTFX
Copper YA38L2NNTFX
  • MPN: YA38L2NNTFX
  • UPC: 781810034743
  • PPN: HBL-YA38L2NNTFX

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$20.00/ EA

Description

Flex Conductor Standard Barrel Narrow, 535.3 kcmil 1325/24 500 Flex, 1/2 in, 5.35 in L.

Specifications

Dimensions

Dimension - B Length fraction
1-7/16 in
Dimension - Bolt Hole Size inch
0.52 in
Dimension - D inch
3.03 in
Dimension - Length Overall inch
5.35 in
Dimension - Outside Diameter inch
1.25 in
Dimension - Strip Length inch
1-7/16
Dimension - Z inch
0.65 in
Dimension - B Length inch1.45 in
Dimension - Bolt Size fraction1/2
Dimension - L Length Overall mm136 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch1.63 in
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight

Certifications and Compliance

Certification - CSA Approved
Yes
Certification - UL Recognized
No
Standards - RoHS Compliance Status
CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes

Conductor Related

Conductor - Copper DLO Size
535.3 (1325/#24) DLO
Conductor - Copper Flex G Size
500 kcmil
Conductor - Copper Flex H Size
500 kcmil
Conductor - Copper Flex I Size
500 kcmil
Conductor - Copper Flex K Size
500 kcmil
Conductor - Copper Flex M Size
500 kcmil
Conductor - Copper DLO Size Range535.3 (1325/#24) DLO
Conductor - Copper Flex G Size Range500 kcmil
Conductor - Copper Flex H Size Range500 kcmil
Conductor - Copper Flex I Size Range500 kcmil
Conductor - Copper Flex K Size Range500 kcmil
Conductor - Copper Flex M Size Range500 kcmil

General

Application
For Flex Conductor
Connector Type
Terminal
Feature - Barrel Type
Standard
Physical Attribute - Number of Holes
2
Plating Type
Tin - Electro Plated
Trade Name
HYLUG™
UPC
781810034743
Color CodePink
Die IndexL99
MaterialCopper
PlatedY
Sub BrandTERMINALS, HYLUG
TypeYAV-L-NTFX

Electrical Ratings

Rating - KVA
35 kV
Voltage - Maximum
35000
Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity
1
