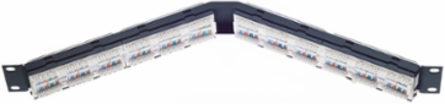

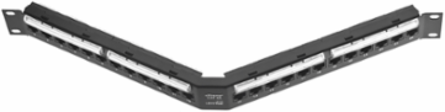

Leviton 6A587-U24 Cat 6A Angled 110-Style Patch Panel 24-Port 1RU Black
Leviton 6A587-U24 Cat 6A Angled 110-Style Patch Panel 24-Port 1RU Black
- MPN: 6A587-U24
- UPC: 078477445655
- PPN: LEV-6A587-U24
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1058.95/ EA
Description
Leviton Cat 6A UTP Angled 110-Style Patch Panels are designed for use with industry-standard 19-inch racks and cabinets for telecommunication room and data center applications. Patch panels exceed all component performance requirements in the ANSI/TIA-568.2 standard and the Class EA component requirements for the ISO/IEC 11801-1, and EN 57013-1 standards from 1 MHz to 500 MHz to support the IEEE 802.3 standard for 10GBASE-T network performance. Patch panels feature industry-standard in-line IDCs and are component rated, which provides greater Cat 6A performance margins in link and channel field testing
Features
- Independently tested and verified by Intertek (ETL) for Cat 6A component performance
- 110 IDC termination fields support 26 to 22 AWG solid copper conductors
- Conductor retention feature holds individual conductors in place during termination
- Pair Separation Towers facilitate separation of Cat 6A conductors
- Separated blocks provide room to work with larger Cat 6A cables and help to identify first-pair position
- Terminates up to 50% faster than Cat 6A panels requiring an additional termination manager
- Reversible card shows T568 A and B wiring schemes separately
- Industry-standard port density: 24-port 1RU and 48-port 2RU
- IDC stuffer caps provide termination strain relief
- Angled design facilitates proper bend radius
Specifications
Product Features
- Category
- Cat 6A
- Labeling
- Mag Lens
- Ports
- 24
- RU
- 1
- Termination
- 110-Style Punchdown
ColorBlack
Panel ShapeAngled
Product FamilyPatch Panels
ShieldingUnshielded
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
