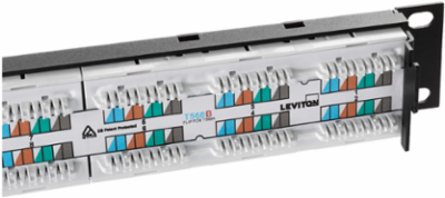

Leviton 6A586-U24 Cat 6A Flat Patch Panel, 24-Port, 1RU, Black, 110-Style Termination

MPN: 6A586-U24
UPC: 078477445631
PPN: LEV-6A586-U24

$1069.84

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cat 6A UTP Flat 110-Style Patch Panels are designed for use with industry-standard 19-inch racks and cabinets for telecommunication room and data center applications. Patch panels exceed all component performance requirements in the ANSI/TIA-568.2-D standard and the Class EA component requirements for the ISO/IEC 11801-1 and EN 57013-1 standards from 1 MHz to 500 MHz to support the IEEE 802.3an standard for 10GBASE-T network performance. Patch panels feature industry-standard, in-line IDCs and are component rated, which provides greater Cat 6A performance margins in link and channel field testing

Features

Independently tested and verified by Intertek (ETL) for Cat 6A component performance
110 IDC termination fields support 26 to 22 AWG solid copper conductors
Conductor-retention feature holds individual conductors in place during termination
Pair Separation Towers facilitate separation of Cat 6A conductors
Separated blocks provide room to work with larger Cat 6A cables and help to identify first-pair position
Terminates up to 50% faster than Cat 6A panels requiring additional termination manager
Reversible card shows T568 A and B wiring schemes separately
Industry-standard port density: 24-port 1RU and 48-port 2RU
IDC stuffer caps provide termination strain relief
