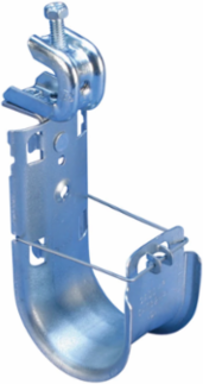

nVent Caddy CAT16HPBC200B Improved Cat HP J-Hook with BC200 Beam Clamp, Swivel, 1" dia, 1/2" Max Flange
- MPN: CAT16HPBC200B
- UPC: 782856793625
- PPN: CAD-CAT16HPBC200B
- UNSPSC: 39131709
CAD
$14.61
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

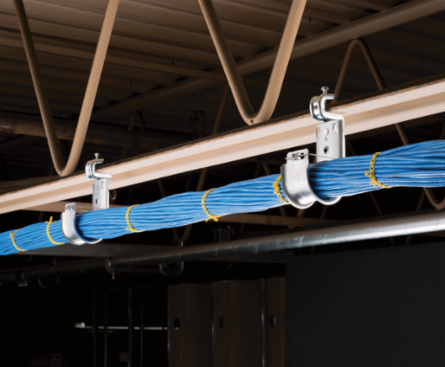

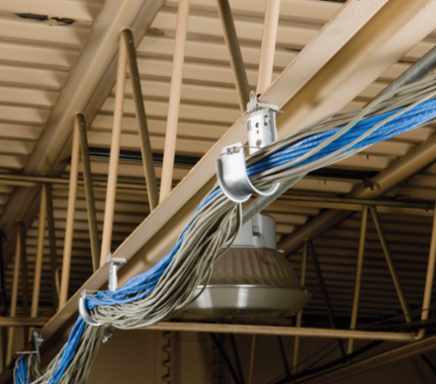

The Improved nVent CADDY Cat HP J-Hook with BC200 Beam Clamp, Swivel attaches easily to beam flanges and provides a 360-degree rotation for supporting high-performance cable routing. 1" dia, 1/2" Max Flange.
Features
- Easy beam flange installation
- Rotates 360 degrees to support various directional runs of cable
- Versa-Mount Technology: Innovative attachment design provides multiple structural and installation methods for wall, ceiling, and threaded rod mounting applications
- Improved design allows for optimized inventory, reducing job site scheduling risks associated with multiple SKUs
- Provides optimal support for high-performance data cable—including category cable, Power over Ethernet (PoE), and fiber optic
- Complies with EN 50174-2
- Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Finish | Pregalvanized |
| Area | 0.0074305554800611 |
| Cable Capacity, Cat 6A | 10 |
| Static Load (F) | 60 |
| Sub Brand | CADDY |
| Material | Steel |
|---|---|
| Diameter (Ø) | 25 |
| Cable Capacity, Cat 6 | 15 |
| Cable Capacity, Cat 5e | 20 |
| Static Load | 270 |
