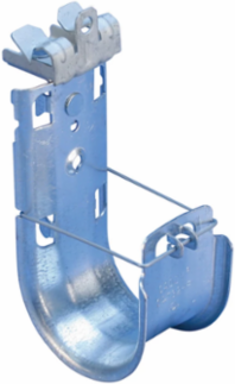

nVent Caddy CAT32HP24 Cat HP 2" J-hook with hammer-on flange clip, swivel 1/8"–1/4" flange
- MPN: CAT32HP24
- UPC: 782856716679
- PPN: CAD-CAT32HP24
- UNSPSC: 39131709
CAD
$16.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

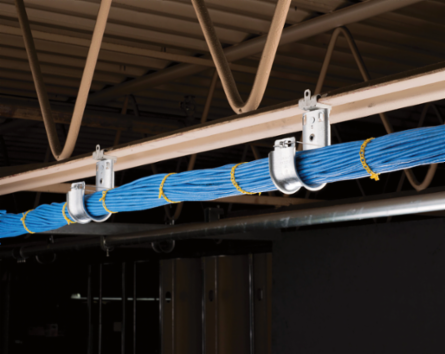

Ideal combination fasteners for structural steel beam applications with the high performance CAT HP series J-Hooks in a factory assembly. 2" (50 mm) J-hook to hammer-on fastener 1/8-1/4" (3-8 mm) flanges.
Features
- Requires only a hammer to install
- Rotates 360 degrees to support various directional runs of cable
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
- Cost effective alternative to expensive cable tray
- Complies with EN 50174-2
- Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Finish
- Pregalvanized
- Area
- 2,561
- Cable Capacity, Cat 6
- 60
- Flange Thickness (FT)
- 3
- Static Load
- 270
MaterialSteel
Diameter (Ø)50
Cable Capacity, Cat 5e90
Cable Capacity, Cat 6A35
Static Load (F)60
Sub BrandCADDY
