nVent Caddy CAT32HPAFAB6 nVent CADDY Cat HP J-Hook with Pin Driven Angle Bracket, 2" dia, 3/8" Hole
- MPN: CAT32HPAFAB6
- UPC: 782856793502
- PPN: CAD-CAT32HPAFAB6
- UNSPSC: 39131709
CAD
$15.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

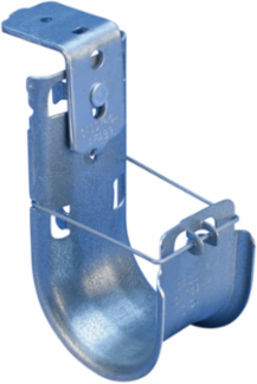

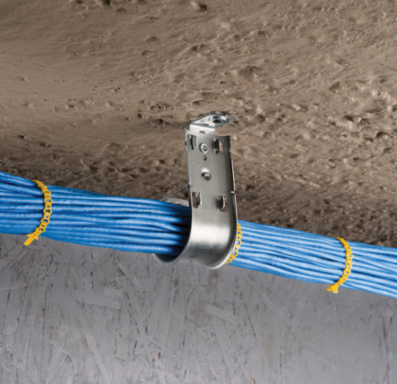

nVent CADDY Cat HP J-Hook with Pin Driven Angle Bracket, 2" dia, 3/8" Hole
Features
- Longer leg angle bracket for tool clearance
- Designed to fit a variety of pin drivers
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
- Cost effective alternative to expensive cable tray
- Complies with EN 50174-2
- Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Finish
- Pregalvanized
- Area
- 2,561
- Cable Capacity, Cat 6
- 60
- Hole Size (HS)
- 9
- Static Load
- 270
MaterialSteel
Diameter (Ø)50
Cable Capacity, Cat 5e90
Cable Capacity, Cat 6A35
Static Load (F)60
Sub BrandCADDY
