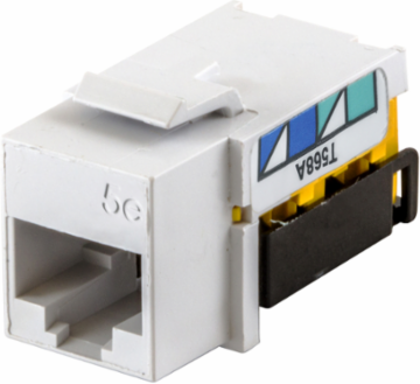

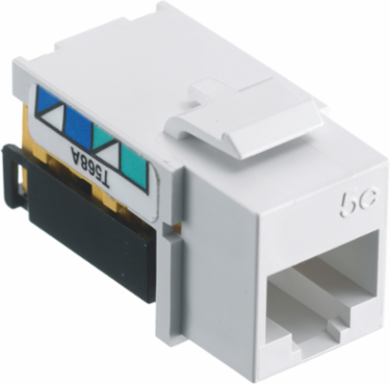

Bryant NSJ5EW Category 5e netSELECT Jack, 0.86 Inch x 0.67 Inch x 1.29 Inch, Quick-Lace Termination
Bryant NSJ5EW Category 5e netSELECT Jack, 0.86 Inch x 0.67 Inch x 1.29 Inch, Quick-Lace Termination
- MPN: NSJ5EW
- UPC: 883778500107
- PPN: HBL-NSJ5EW
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$9.12/ EA
Description

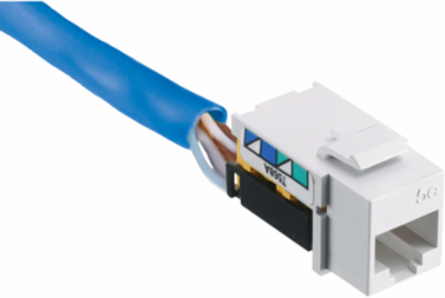

netSELECT™ Category 5e modular jacks meet all TIA channel parameters and support applications up to 2.5GBASE-T. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Easy To Terminate Angled Wiring Towers
- Exceeds TIA Category 5e Standards
- Quick-Lace Termination
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Width
- 0.820 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 (17) x 1.29 (33)
- Application
- Up to 2.5GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 5e;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Connectivity
- RJ45 Jack to IDC Punch Down
- Display Size
- Standard Sized Product
- Operating Cycles
- 750+ Plug
- Description - Invoice
- JACK, NSJ,CAT5E,8 POS,UNI,A/B,WH
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- HPWALL2
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.45 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 13.506 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 39.600 in
- Pallet Weight
- 288.000 lb.
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 5e;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 5e Component
Standards - RoHS Compliance StatusCM
ColorWhite
Contact ResistancePer TIA
Insertion LossPer TIA
Special FeaturesQuick-Lace Termination
Sub BrandnetSELECT™
TypeModular Jack
General Literature Asset 1 Display TextConcealled Connections
Construction Material - MainThermoplastic
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHXJSC5EW
Material - Mounting HardwareScrew Mounting
SeriesnetSELECT™ Series
BOX SIZE4.700x6.300x5.600 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack883778500107
Case - Total Units300 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70883778500106
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
