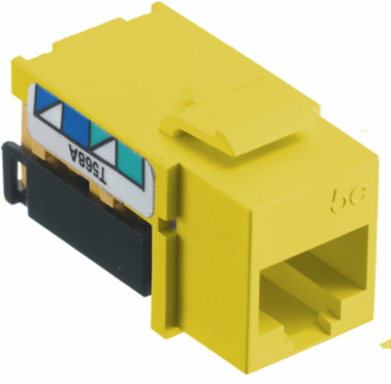

Hubbell Premise Wiring NSJ5EY24 netSELECT™ Category 5e Modular Jack, 0.86 x 0.67 x 1.29 Inch, Quick-Lace Termination
- MPN: NSJ5EY24
- UPC: 883778507229
- PPN: HBL-NSJ5EY24
- UNSPSC: 39121444
CAD
$451.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
netSELECT™ Category 5e modular jacks meet all TIA channel parameters and support applications up to 2.5GBASE-T. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Easy To Terminate Angled Wiring Towers
- Exceeds TIA Category 5e Standards
- Quick-Lace Termination
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 8.0000 in
- Number of Pieces in Package
- 24
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Color
- Yellow
- Contact Resistance
- Per TIA
- Insertion Loss
- Per TIA
- Special Features
- Quick-Lace Termination
- Sub Brand
- netSELECT™
- Type
- Modular Jack
- General Literature Asset 1 Display Text
- Infrastructure for Digital Lifestyles
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Description - Invoice
- JACK, NSJ,CAT5E,8 POS,UNI,A/B,YL,24PK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A82A880
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- PK
- Carton - Gross Weight per Pack
- 1.360 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4 EA
- Case Weight
- 6.800 lb.
- Each - Pack Description
- Pack
- Package Quantity
- 1 EA
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 5e;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 5e Component
ApplicationUp to 2.5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
MountingSnap-fit
StandardANSI/TIA/EIA-568 Category 5e;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles750+ Plug
Class CodeA82
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberNSJ5EY25
Material - Mounting HardwareScrew Mounting
SeriesnetSELECT™ Series
BOX SIZE6.875x11.250x9.125 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00883778507229
Case - Total Units20 EA
Each - Number of Sub Packs1
Package - Total Units1 EA
NAICS Code3342107206
Certifications
- EU RoHS Indicator
- Yes
