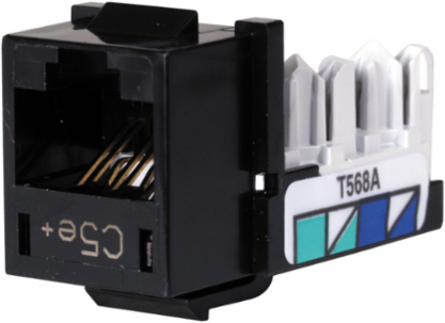

Bryant HXJ5EBK XCELERATOR™ Category 5e Modular Jack, Quick-Lace Termination, 0.86 x 0.67 x 1.29 Inch
Bryant HXJ5EBK XCELERATOR™ Category 5e Modular Jack, Quick-Lace Termination, 0.86 x 0.67 x 1.29 Inch
- MPN: HXJ5EBK
- UPC: 662620825106
- PPN: HBL-HXJ5EBK
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$8.95/ EA
Description
XCELERATOR™ Category 5e modular jacks exceed all TIA component level parameters to provide 2.5GBASE-T application assurance. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Third Party Verified Category 5e Component Compliant
- Quick-Lace Towers Accelerate Termination
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Width
- 0.970 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 (17) x 1.29 (33)
- Application
- Up to 2.5GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Special Features
- Quick-Lace Termination
- Sub Brand
- XCELERATOR™
- Type
- Modular Jack
- Connectivity
- RJ45 Jack to IDC Punch Down
- Display Size
- Standard Sized Product
- Operating Cycles
- 2000 Plug
- Description - Invoice
- JACK, HXJ,CAT5E,8POS,UNI A/B,BK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- HPWALL2
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 19.6 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 19.100 lb.
- Lowest Level UOM
- Each
- Package Quantity
- 1 EA
- Pallet Height
- 36.900 in
- Pallet Weight
- 229.200 lb.
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 5e Component
Standards - RoHS Compliance StatusCM
ColorBlack
Contact Resistance100 Ohm
MountingSnap-fit
StandardANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
Construction Material - MainThermoplastic
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHXJ3BK
Material - Mounting HardwareKeystone
SeriesXCELERATOR™ Series
BOX SIZE4.700x6.400x5.700 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620825106
Case - Total Units650 EA
Each - Pack DescriptionEach
Package - Total Units1 EA
Pallet - GTIN - Package70662620825105
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
