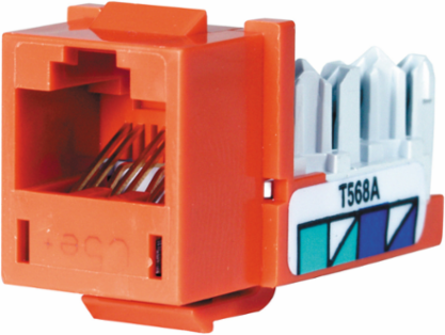

Hubbell Premise Wiring HXJ5EOR24 XCELERATOR Cat 5e Telephone/Data Jack, RJ-45, Quick-Lace Termination
- MPN: HXJ5EOR24
- UPC: 662620663715
- PPN: HBL-HXJ5EOR24
- UNSPSC: 39121444
CAD
$202.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Telephone/Data, Jack, XCELERATOR, Cat 5e
Features
- Third Party Verified Category 5E Component Compliant
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 4.980 in
- Number of Pieces in Package
- 24
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Color
- Orange
- Contact Resistance
- 100 Ohm
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Connectivity
- RJ45 Jack to IDC Punch Down
- Display Size
- Standard Sized Product
- Operating Cycles
- 2000 Plug
- Class Code
- A60
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HXJ5EOR25
- Material - Mounting Hardware
- Keystone
- Series
- XCELERATOR™ Series
- BOX SIZE
- 7.300x10.900x9.200 (in)
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620663715
- Case - Total Units
- 20 EA
- Each - Number of Sub Packs
- 1
- Package - Total Units
- 1 EA
- Pallet - GTIN - Package
- 70662620663714
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 5e Component
ApplicationUp to 2.5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesQuick-Lace Termination
Sub BrandXCELERATOR™
TypeModular Jack
General Literature Asset 1 Display TextSPEEDGAIN Category 5e Enhanced Performance System
Construction Material - MainThermoplastic
Mounting TypeSnap-fit
StyleRJ-45 Jack
Description - InvoiceJACK, HXJ,CAT5E,8POS,UNI A/B,OR,24PK
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA60A540
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasurePK
Carton - Gross Weight per Pack1.360 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4 EA
Case Weight12.650 lb.
Each - Pack DescriptionPack
Package Quantity1 EA
Pallet Height36.600 in
Pallet Weight151.800 lb.
NAICS Code3342107206
Certifications
- EU RoHS Indicator
- Yes
