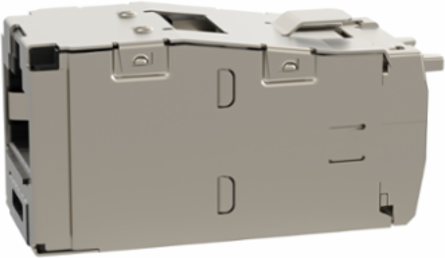

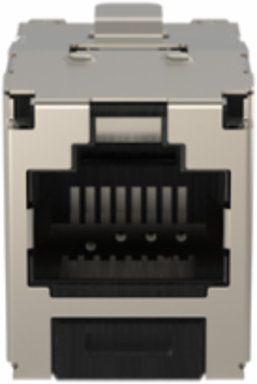

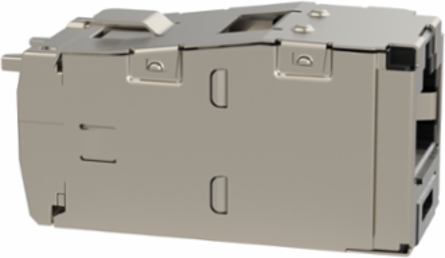

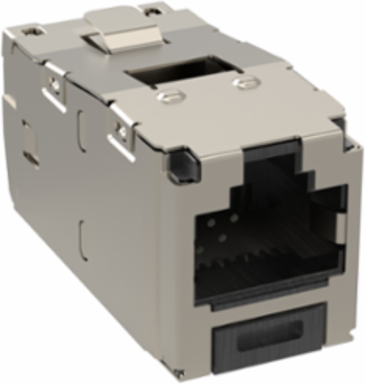

Panduit CJS5E88TGY Mini-Com® Shielded RJ45 Cat 5e TG Jack Module
- MPN: CJS5E88TGY
- UPC: 074983035625
- PPN: PAN-CJS5E88TGY
- UNSPSC: 43223301
CAD
$20.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Mini-Com® Cat 5e Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shielded Modular Patch Panels and Faceplates. The jack module is black.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Costa Rica |
|---|---|
| Product Segment | EDI-ENT |
| Color | Black |
| Overall Depth (mm) | 38.1 |
| Overall Depth (In.) | 1.5 |
| Sub Brand | Pan-Net® |
| Module Type | Mini-Com® |
| Performance Level | Category 5e |
| Minimum Operating Temperature (°F) | 14 |
| Termination Style | TG Style |
| Minimum Storage Temperature (°F) | -40 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Contact Material | Plated Phosphor Bronze |
| Any Reason Not to Sell | N |
|---|---|
| Minimum Storage Temperature (°C) | -40 |
| Overall Length (mm) | 38.1 |
| Overall Length (In.) | 1.5 |
| Overall Width (In.) | 0.62 |
| Resistance Properties | Heat-Resistant |
| Body Material | Polycarbonate |
| Maximum Storage Temperature (°F) | 167 |
| Maximum Storage Temperature (°C) | 75 |
| Connector Type | Jack Module - Standard |
| Overall Width (mm) | 15.7 |
| Overall Height (mm) | 18.8 |
| Maximum Operating Temperature (°C) | 75 |
| Product Type | Jack Module |
| Overall Height (In.) | 0.74 |
Packaging Details
| UPC | 07498303562 |
|---|---|
| Standard Package Volume Ft3 | 0.0030 |
| Std Package Height In | .75 |
| Std Package Length In | 3.45 |
| Std Package Width In | 3.25 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 1 |
| Standard Carton Volume Ft3 | 0.1516 |
| Std Carton Height In | 3.7 |
| Std Carton Length In | 10.95 |
| Std Carton Width In | 7.55 |
| Std Ctn Qty | 50 |
| EAN | 00074983035625 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 16,800 |
| Pallet Weight | 740.8800 |
| GTIN Package | 00074983035625 |
|---|---|
| Standard Package Weight Pounds | 0.0441 |
| Std Package Height MM | 19.05 |
| Std Package Length MM | 87.63 |
| Std Package Width MM | 82.55 |
| UOM EA PK | EA |
| GTIN Carton | 50074983035620 |
| Standard Carton Weight Pounds | 2.2050 |
| Std Carton Height MM | 93.98 |
| Std Carton Length MM | 278.13 |
| Std Carton Width MM | 191.77 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 25.0000 |
| Pallet Volume | 50.950521 |
| RoHS Compliant | Compliant |
