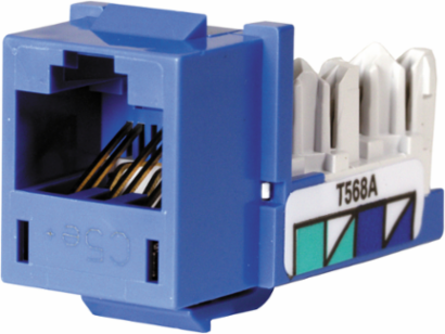

Hubbell Premise Wiring HXJ5EB24 Category 5e XCELERATOR Jack, 6.000 Inch Width, RJ-45 Connector
- MPN: HXJ5EB24
- UPC: 662620663630
- PPN: HBL-HXJ5EB24
- UNSPSC: 39121444
CAD
$202.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCELERATOR™ Category 5e modular jacks exceed all TIA component level parameters to provide 2.5GBASE-T application assurance. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Third Party Verified Category 5e Component Compliant
- Quick-Lace Towers Accelerate Termination
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 6.000 in
- Number of Pieces in Package
- 24
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Color
- Blue
- Contact Resistance
- 100 Ohm
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- General Literature Asset 2 Display Text
- SPEEDGAIN Category 5e Enhanced Performance System
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Description - Invoice
- JACK, HXJ,CAT5E,8POS,UNI A/B,BL,24PK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A60A540
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- PK
- Carton - Gross Weight per Pack
- 13 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4 EA
- Case Weight
- 12.800 lb.
- Each - Pack Description
- Pack
- Package - Total Units
- 1 EA
- Pallet - GTIN - Package
- 70662620663639
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 5e Component
ApplicationUp to 2.5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesQuick-Lace Termination
Sub BrandXCELERATOR™
TypeModular Jack
General Literature Asset 1 Display TextHDPJ High Density Jack Panels
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles2000 Plug
Class CodeA60
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHXJ5EB25
Material - Mounting HardwareKeystone
SeriesXCELERATOR™ Series
BOX SIZE7.400x11.100x9.000 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00662620663630
Case - Total Units20 EA
Each - Number of Sub Packs1
Lowest Level UOMEach
Package Quantity1 EA
Pallet Height36.900 in
Pallet Weight153.600 lb.
NAICS Code3342107206
