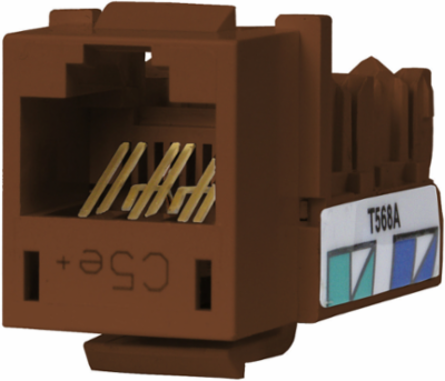

Hubbell Premise Wiring HXJ5EBN24 Cat 5e Modular Jack, Universal Wired A/B, 8 Position, 1,000 Vac
- MPN: HXJ5EBN24
- UPC: 662620663654
- PPN: HBL-HXJ5EBN24
- UNSPSC: 39121444
CAD
$202.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Jack, Cat 5e, 8 Position, Universal Wired, A/B
Features
- Two distinct labels eliminate wiring confusion, T568B or T568A
- IDC towers have an inner blade to assist in pair splitting without performance disruption
- Small form factor allows more jacks in devices without restriction or constraint
- Quick-Lace Termination
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 8.0000 in
- Number of Pieces in Package
- 0
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Color
- Brown
- Contact Resistance
- 100 Ohm
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Description - Invoice
- JACK, HXJ,CAT5E,8POS,UNI A/B,BN,24PK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Keystone
- Series
- XCELERATOR™ Series
- BOX SIZE
- 6.875x11.250x9.125 (in)
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620663654
- Case - Total Units
- 20 EA
- Each - Number of Sub Packs
- 1
- Lowest Level UOM
- Each
- Package Quantity
- 1 EA
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 5e Component
ApplicationUp to 2.5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesQuick-Lace Termination
Sub BrandXCELERATOR™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles2000 Plug
Class CodeA60
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA60A540
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasurePK
Carton - Gross Weight per Pack1.360 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4 EA
Case Weight7.000 lb.
Each - Pack DescriptionPack
Package - Total Units1 EA
NAICS Code3342107206
Certifications
- EU RoHS Indicator
- Yes
