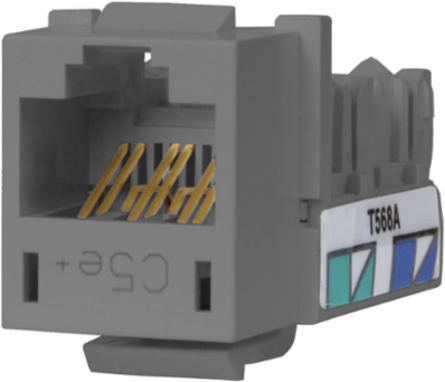

Hubbell Premise Wiring HXJ5EGY24 XCELERATOR Telephone/Data Jack, Cat 5e, 0.86 x 0.67 x 1.29 Inch
- MPN: HXJ5EGY24
- UPC: 662620663692
- PPN: HBL-HXJ5EGY24
- UNSPSC: 39121444
CAD
$202.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Telephone/Data, Jack, XCELERATOR, Cat 5e
Features
- Third Party Verified Category 5E Component Compliant
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 3.500 in
- Number of Pieces in Package
- 24
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Color
- Gray
- Contact Resistance
- 100 Ohm
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- General Literature Asset 2 Display Text
- SPEEDGAIN Category 5e Enhanced Performance System
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Description - Invoice
- JACK, HXJ,CAT5E,8POS,UNI A/B,GY,24PK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A60A540
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- PK
- Carton - Gross Weight per Pack
- 13.15 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4 EA
- Case Weight
- 7.000 lb.
- Lowest Level UOM
- Each
- Package Quantity
- 1 EA
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 5e Component
ApplicationUp to 2.5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesQuick-Lace Termination
Sub BrandXCELERATOR™
TypeModular Jack
General Literature Asset 1 Display TextHDPJ High Density Jack Panels
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles2000 Plug
Class CodeA60
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHXJ5EGY25
Material - Mounting HardwareKeystone
SeriesXCELERATOR™ Series
BOX SIZE6.875x11.250x9.125 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00662620663692
Case - Total Units20 EA
Each - Pack DescriptionEach
Package - Total Units1 EA
NAICS Code3342107206
Certifications
- EU RoHS Indicator
- Yes
