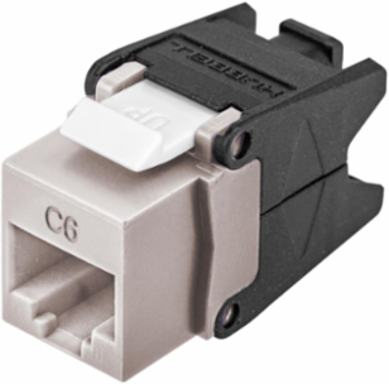

Hubbell Premise Wiring HJU6OW Category 6 Jack Cobra-LockTM Termination, 3.500 Inch Width, Modular Jack

MPN: HJU6OW
UPC: 662620669601
PPN: HBL-HJU6OW
UNSPSC: 39121444

$23.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NEXTSPEED® Category 6 is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6 performance and headroom beyond 250MHz for 5GBASE-T assurance. NEXTSPEED® Category 6 jacks incorporate Cobra-Lock™ termination which empowers installers to perform fast, repeatable, and reliable terminations.

Features

Third Party Verified Category 6 Component
Cobra-Lock™ Termination Reduces Termination Time by Over 75%
Wires Secured Under Constant Compression
Easily Re-Terminate
Qualified to 150% of 802.3bt PoE Current Level
Cobra-Lock™ Termination

Specifications

Additional

Withstand Voltage	1,000 Vac @ 60 Hz
Performance	TIA Cat 6 Component, 3rd Party Verified, PoE Qualified to 150% 802.3bt Current Level, IEC60512-99-002 Tested
IDC Re-termination Cycles	25 Maximum
Width	3.5 in
Contact Material	Copper Alloy with Gold Over Plating; IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Color	Office White / Light Almond
Compliance	ANSI/TIA/EIA-568 Cat 6; UL 1863; UL 2043; RoHS Compliant; IEC60512-99-002
Wire Compatibility	24-22 AWG Solid
Series	Cobra-LockTM Series

Temperature Rating	-40 C to 75 C Continuous
Plug Mating Cycles	750 Minimum
Size	0.87 x 0.67 x 1.39 in. (22 x 17 x 35 mm)
Material - Housing	High-impact thermoplastic (UL 94V-0)
Mounting Type	Snap-fit
Environmental Conditions	Indoor Dry Unless Protected
Plug Compatibility	RJ-11 to RJ-45
Country of Origin	TW
Type	Modular RJ-45 Jack with Cobra-Lock Termination
