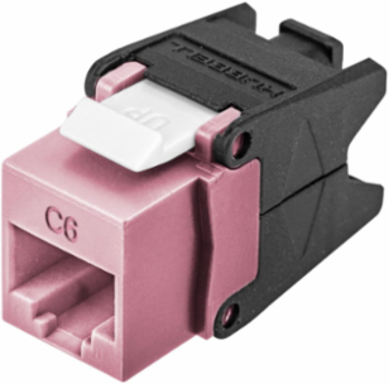

Hubbell Premise Wiring HJU6PK24 Category 6 Modular Jack with Cobra-Lock™ Termination, 0.87 Inch x 0.67 Inch x 1.39 Inch
- MPN: HJU6PK24
- UPC: 662620669656
- PPN: HBL-HJU6PK24
- UNSPSC: 39121444
CAD
$529.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NEXTSPEED® Category 6 is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6 performance and headroom beyond 250MHz for 5GBASE-T assurance. NEXTSPEED® Category 6 jacks incorporate Cobra-Lock™ termination which empowers installers to perform fast, repeatable, and reliable terminations.
Features
- Third Party Verified Category 6 Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Dimensions
- 0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
- Industry Standard(s)
- ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Performance
- TIA Cat 6 Component, Third Party Verified
- Color
- Pink
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Size
- 0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
- Standard
- ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- PK
- Carton - Gross Weight per Pack
- 16.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 15
- NAICS Code
- 3342107206
Contact Point MaterialCopper Alloy with Gold Over Plating
Width4.200 in
Number of Pieces in Package24
ApplicationUp to 5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
MountingSnap-fit
Special FeaturesCobra-Lock™ Termination
Sub BrandCobra-Lock
TypeModular Jack with Cobra-Lock
ConnectivityRJ45 Jack to Cobra-Lock
Display SizeStandard Sized Product
Operating Cycles750+ Plug & 25 Re-Termination Cycles
Class CodeA60
Harmonization Code8536698000
Sub Class CodeA60A540
SeriesCobra-Lock™ Series
BOX SIZE9.600x15.600x10.300 (in)
Carton - Number of Sub Packs15
Carton - SCC-14 Next Lower Level Sub Pack00662620669656
Case Weight8.450 lb.
Certifications
- EU RoHS Indicator
- Yes
